Product Overview

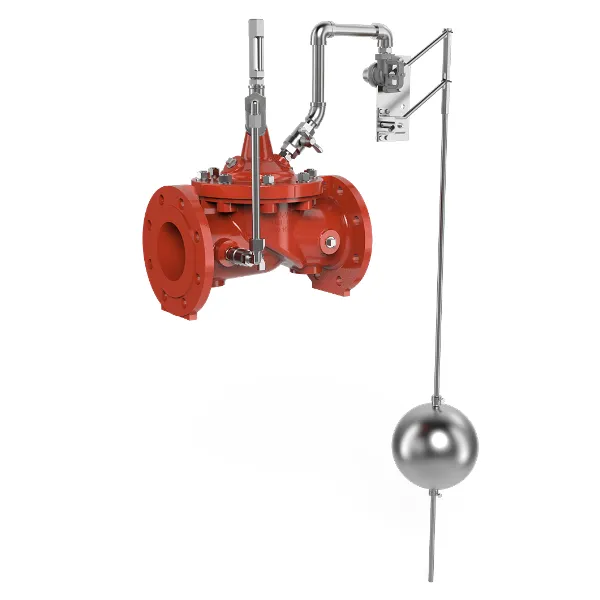

The CLA-VAL 427-01 & 429-01/91: Modulating Float Level Control Valve is a self-stabilizing valve designed to maintain a constant liquid level. A slight change in liquid level moves the Float Control, prompting the main valve to seek a new position. As part of the CLA-VAL SERIES 420, this valve maintains a constant water level in a reservoir by compensating for variations in supply or demand. It can be installed to control the flow into or out of the reservoir by closing on rising levels or opening on decreasing levels. The CLA-VAL 429-01 is specifically designed for high-pressure system networks (P<16bar) and where tank levels change rapidly, recommended for 150 mm and less. These valves offer simple, reliable, and accurate operation, functioning completely automatically.

Key Benefits

• Simple, reliable and accurate operation.
• Completely automatic operation.
• Easy adjustment and maintenance.
• Made with quality approved materials.
• World Wide Support is available.
• Maintains a constant liquid level in reservoirs.
• Self-stabilizing functionality.
• Suitable for high-pressure system networks and rapidly changing tank levels (CLA-VAL 429-01).

Applications

• Maintaining constant water levels in reservoirs.
• Controlling flow into or out of a reservoir by closing on rising levels or opening on decreasing levels.
• High pressure system networks (P<16bar) and rapidly changing tank levels (CLA-VAL 429-01).

Features & Construction

• 2-Way Modulating Float Level Control options: CFM-7 (for 427-01), CFM-9 (for 429-01), or CFCM-M1E (for 429-91).
• Series: CLA-VAL SERIES 420.

Customisation Options

Option	Description
LFS Option	Control Low flows or night flows.
KO Option	Extend valve life with Anti-Cavitation trim.
KG1 Option	Use stem cleaning for harsh water.
Maintenance	Check on periodic maintenance.
Environment	Adapt to high temperatures or frost risk.
Security	Add hydraulic safety back-up to your valve.
Protection	Remove excessive system overpressures.
Corrosion	Protect your valve with upgraded materials.

Installation & Maintenance

• Can be installed to control the flow into or out of the reservoir.
• Easy adjustment and maintenance.
• For the best CLA-VAL regulation, it is recommended to combine this valve with the H-Strainer AQUA 90-501 and the "anti-shock" air release & vacuum break valve AQUA 70-516.
