Product Overview

The CLA-VAL 40-01 Flow Control Valve is engineered to accurately limit excessive flow to a preselected maximum rate, regardless of changes in pressure or varying inlet flow. This valve operates completely automatically, offering a simple, reliable, and accurate solution for managing water supply in various systems. It is typically installed where water supply to a system (such as an inlet to a reservoir or for industrial users) must be limited to a maximum flow rate. Manufactured with quality-approved materials, the CLA-VAL 40-01 is designed for easy adjustment and maintenance, backed by worldwide support from IPL group.

Key Benefits

• Accurate Flow Limitation: Accurately limits excessive flow to a preselected maximum rate, regardless of upstream pressure fluctuations or varying inlet flow conditions.
• Fully Automatic Operation: Provides completely automatic operation, ensuring consistent flow control without constant manual intervention.
• Simple & Reliable: Designed for straightforward functionality, offering reliable and accurate performance.
• Easy Adjustment & Maintenance: Features user-friendly adjustment mechanisms and is built for easy maintenance, reducing operational complexity.
• Quality Approved Materials: Constructed from high-quality, approved materials ensuring durability and long service life.

Applications

The CLA-VAL 40-01 Flow Control Valve is typically installed in water supply systems where strict flow rate limitations are necessary. Common applications include:

• Inlets to reservoirs, to control maximum fill rates.
• Industrial users, to limit water supply to a maximum flow rate.
• Any system requiring precise control over water flow to a preselected maximum.

Features & Construction

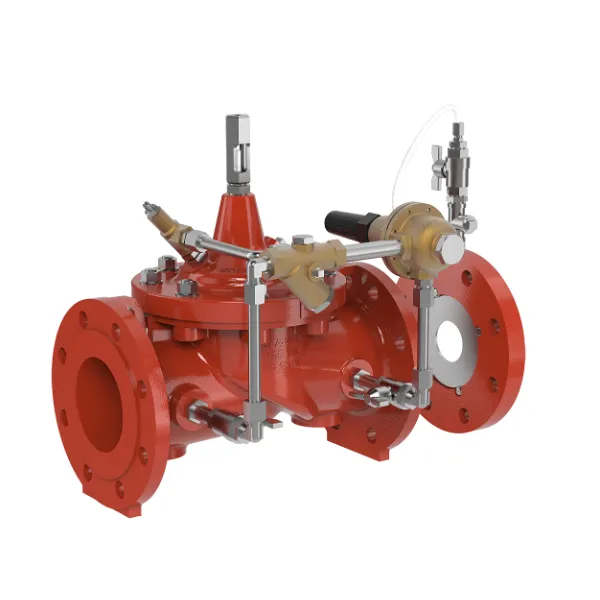

• Main Valve: HYTROL AE/GE/NGE series.
• Control Mechanism: Utilizes a Flow Control (CDHS-18) that responds to differential pressure changes sensed across an Orifice Plate Assembly (X52-A) to modulate the main valve, maintaining a relatively constant rate of flow.
• Pilot System Protection: Includes a Strainer (X44-A) in the pilot supply line to protect against foreign particles.
• Isolation: Features Isolation Ball Valves (RB-117) to isolate the pilot system from main line pressure.
• Speed Control: A Needle Valve (6120) controls the opening speed of the main valve.

Customisation Options

• Main Valve Sizing: Available in DN 32-DN 400 for AE/GE series and DN 50-DN 600 for NGE series.
• Operational Enhancements:
  • LFS Option: For controlling low flows or night flows.
  • KO Option: To extend valve life with Anti-Cavitation trim.
  • KG1 Option: For stem cleaning in harsh water conditions.
• Environmental Adaptability: Options to adapt to high temperatures or frost risk.
• Security & Protection: Options to add hydraulic safety back-up to your valve or remove excessive system overpressures.
• Corrosion Protection: Possibility to protect your valve with upgraded materials for enhanced corrosion resistance.
• Optional Nylon pipe (Ø6/3mm) for connecting the differential pressure control and orifice plate.
• Optional 2-Way pressure cocks (Rp 3/8") to allow for the installation of a differential pressure gauge.

Technical Specifications

Specification	Value
Main Valve Model	HYTROL 100-01 (AE/GE/NGE series)
Main Valve Size Range	DN 32 - DN 400 (for AE/GE series), DN 50 - DN 600 (for NGE series)

Dimensional and Weight Specifications by Nominal Diameter (DN)

Flanged (mm)	DN50	DN65	DN80	DN100	DN125	DN150	DN200	DN250	DN300	DN350	DN400	DN450	DN500	DN600
L	230	290	310	350	400	480	600	730	850	980	1100	1200	1250	1450
F	145	170	170	235	295	295	400	510	600	712	712	900	900	900
H	195	225	230	305	365	375	460	547	695	821	821	900	1035	1035
H1(PN10)	82.5	93	100	110	125	142.5	170	200	227.5	252.5	282.5	325	370	430
H1(PN16)	82.5	93	100	110	125	142.5	170	200	227.5	260	290	325	370	430
H1(PN25)	82.5	93	100	117.5	135	150	180	212.5	242.5	277.5	310	335	370	430
Hm	255	295	300	390	470	480	585	700	875	1030	1030	1200	1310	1310
A	190	200	200	200	235	250	270	290	365	400	425	450	520	520
B	145	150	150	160	165	165	200	200	345	385	380	420	460	460
αC	45	60	60	60	80	80	80	80	80	80	80	80	-	120
Weight (Kg)	15	20	25	40	60	70	120	190	330	540	640	700	980	1080

Installation & Maintenance

• Installation: The Orifice Plate Assembly may be fixed directly to the main valve outlet flange; however, better control is obtained if it is installed in stabilized flow conditions downstream of the valve. The recommended distance for optimal control is X=5 pipe diameters and Y=3x pipe diameters from the valve outlet. Ensure system valves are open upstream and downstream, and air is removed from the main valve cover and pilot system at all high points. Isolation cocks must be open during normal operation.
• Adjustment: To increase the rate of flow, turn the adjusting screw of the differential pressure control clockwise. To make the main valve close or open more slowly, turn the adjusting stem of the needle valve (5) clockwise. The suggested initial setting for the needle valve is ½ to 1 turn open; avoid closing it completely as this will prevent valve operation. If high-speed opening and low-speed closing are required by operating conditions, it may be necessary to replace the original orifice plug of the strainer by a smaller one.
• Maintenance: Periodic cleaning of the strainer (4) is recommended to protect the pilot system from foreign particles.
