Product Overview

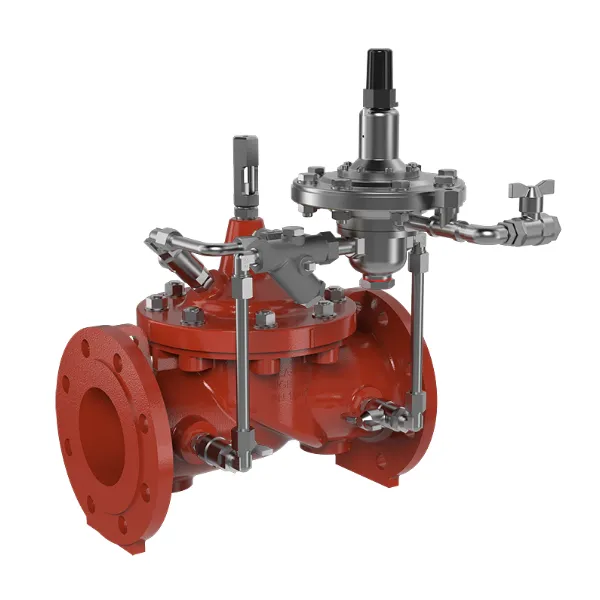

The CLA-VAL 278-01: Constant Altitude Level Control Valve is typically designed for closed reservoirs where water is withdrawn through a separate line. This valve maintains a constant water level in closed tanks by compensating for variations in supply or demand. The desired water level is set by adjusting the spring force. The CLA-VAL 278-01 is designed for one-way flow only. It can be installed to control the flow into or out of the reservoir by closing on rising levels or opening on decreasing levels. It offers simple, reliable, and accurate operation, functioning completely automatically.

Key Benefits

• Simple, reliable and accurate operation.
• Completely automatic operation.
• Easy adjustment and maintenance.
• Made with quality approved materials.
• World Wide Support is available.
• Maintains a constant water level in closed tanks.
• Compensates for variations in supply or demand.

Applications

• Controlling water levels in closed reservoirs where water is withdrawn through a separate line.
• Controlling flow into or out of a reservoir by closing on rising levels or opening on decreasing levels.

Features & Construction

• Constant level altitude control: CRD-HS7.
• Designed for one-way flow only.
• Part of the CLA-VAL SERIES 278.

Customisation Options

Option	Description
LFS Option	Control Low flows or night flows.
KO Option	Extend valve life with Anti-Cavitation trim.
KG1 Option	Use stem cleaning for harsh water.
Maintenance	Check on periodic maintenance.
Environment	Adapt to high temperatures or frost risk.
Security	Add hydraulic safety back-up to your valve.
Protection	Remove excessive system overpressures.
Corrosion	Protect your valve with upgraded materials.

Installation & Maintenance

• The desired water level is set by adjusting the spring force.
• Can be installed to control the flow into or out of the reservoir.
• Easy adjustment and maintenance.
• For the best CLA-VAL regulation, it is recommended to combine the CLA-VAL 278-01 with the H-Strainer AQUA 90-501 and the "anti-shock" air release & vacuum break valve AQUA 70-516.
