Product Overview

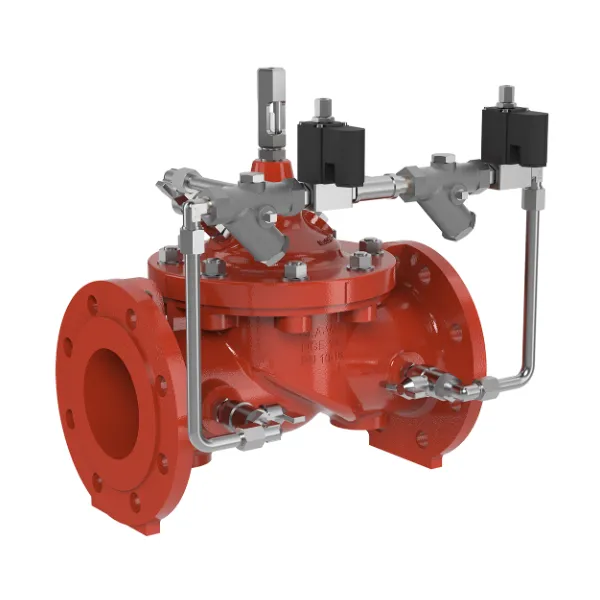

The CLA-VAL 136-07 & -38: Dual Solenoid Control Valve is a step-by-step Solenoid Control Valve specifically designed for large pipes. It is ideal for applications requiring electrical control of the valve. The solenoid pilots add or relieve pressure from the cover chamber to either close or open the valve. This valve can be configured to perform a wide range of functions, including pressure reducing, sustaining, flow control, and level control. As part of the CLA-VAL SERIES 136E/D Solenoid Control Valve series, it opens or closes upon receiving an electrical signal to the solenoid pilot control. The CLA-VAL SERIES 136 Solenoid Control Valve is also described as a Step by Step Control Valve. It offers simple, reliable, and accurate operation, functioning completely automatically.

Key Benefits

• Simple, reliable and accurate operation.
• Completely automatic operation.
• Easy adjustment and maintenance.
• Made with quality approved materials.
• World Wide Support is available.
• Step-by-step control for precise operation.
• Designed for large pipe applications.
• Configurable for a wide range of functions including pressure, flow, and level control.

Applications

• Applications requiring electrical control of the valve.
• Large pipe installations.
• Pressure reducing, pressure sustaining, flow control, and level control functions.

Features & Construction

• 3-Way Solenoid Valves: 311-C (dual solenoids).
• Functions by adding or relieving pressure from the cover chamber.
• Series: CLA-VAL SERIES 136 / 136E/D.

Customisation Options

Option	Description
LFS Option	Control Low flows or night flows.
KO Option	Extend valve life with Anti-Cavitation trim.
KG1 Option	Use stem cleaning for harsh water.
Maintenance	Check on periodic maintenance.
Environment	Adapt to high temperatures or frost risk.
Security	Add hydraulic safety back-up to your valve.
Protection	Remove excessive system overpressures.
Corrosion	Protect your valve with upgraded materials.

Installation & Maintenance

• Easy adjustment and maintenance.
• For the best CLA-VAL regulation, it is recommended to combine this valve with the H-Strainer AQUA 90-501 and the "anti-shock" air release & vacuum break valve AQUA 70-516.
