Product Overview

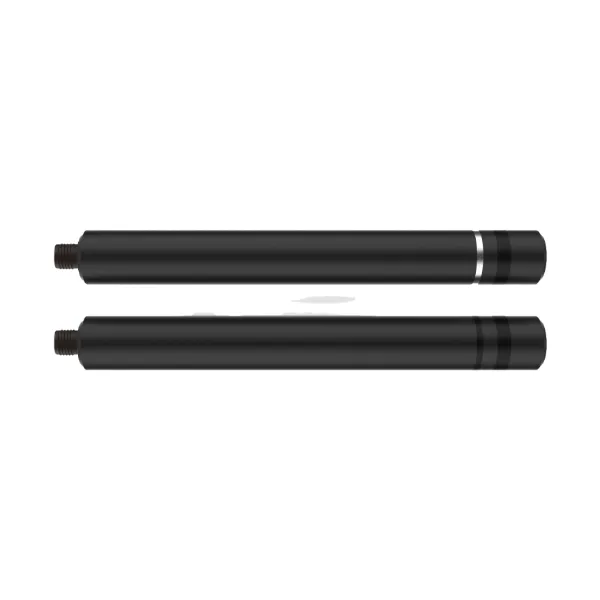

The Chemitec S494N is a family of membrane amperometric probes designed for the measurement of various types of oxidants in water. It features an integrated temperature sensor for automatic signal compensation, which ensures high accuracy across various conditions. The probes are robustly constructed and designed for flexibility, covering a wide range of measuring applications in water treatment and industry. Specific versions of the probe family can detect up to eight different parameters.

Key Benefits

• Family of probes capable of measuring a wide range of oxidants, including Free chlorine, Total chlorine, Chlorine dioxide, Ozone, and Peracetic acid.
• Includes an integrated temperature sensor for automatic signal compensation.
• Suitable for partially tolerating surfactants.

Applications

• Drinking water.
• Service, process, and waste water.
• Industrial water.

Features & Construction

• Parameters Detectable: Free chlorine (organic and inorganic), Total chlorine, Chlorine dioxide, Chlorites, Ozone, Hydrogen peroxide, Peracetic acid, and Bromine.
• Materials: Constructed from PVC, PEEK, AISI 316, and a microporous membrane.
• Dimensions: Measures 210 mm in length with a diameter of 25.00 mm.

Technical Specifications

Specification	Value
Measuring Range	0...2, 5, 10, 20, 200, 2000 ppm (see specific sensor data sheet)
pH Range	4 ... 10 (see specific sensor data sheet)
Conductivity Range	100 - 63000 uS/cm
Flow Rate	30 ... 60 l/h
Pressure (Max)	0 ... 3 bar (no pressure impulses and/or vibrations)
Temperature Range	0 ... 45 degrees C (others on request up to 70 degrees C)
IP Rating	IP65

Installation & Maintenance

• Calibration: Recommended to be done once a week or whenever working conditions (concentration, temperature, or pressure) and/or the gel solution and/or the membrane are changed. A photometric reference method (DPD) is used.
• Electrolyte Solution: Should be replaced every 3-6 months.
• Membrane Cap: Should be replaced every 6-12 months.
