Product Overview

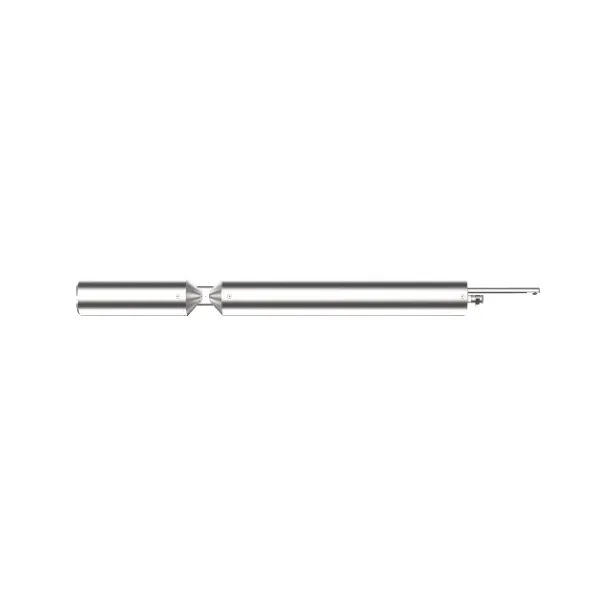

The Chemitec S480 UV/SAC 254 is a UV sensor designed for the determination of SAC254, CODeq, BODeq, and TOCeq in water. Key features include long-lasting UV-LED technology and a robust design. The sensor uses unique nano-coated windows combined with compressed air flushing for extended operating times without the need for cleaning. It is a reagent-free, real-time sensor that automatically performs turbidity compensation via a second measuring channel. The optical path length is adaptable to the application using various adapters, and through application-specific correlation, it can provide a direct output of BODeq, CODeq, TOCeq, and UVT.

Key Benefits

• Reagent-free, real-time measurement without sampling or test sample preparation.
• Achieves long operating times without cleaning, thanks to unique nano-coated windows and compressed air flushing.
• Features automatic turbidity compensation via a second measuring channel.
• The optical path length can be adapted to the application using various adapters.
• Long-lasting LED technology.
• Low required supervision (typically less than 0.5 h/month).

Applications

• Sewage treatment plants.
• Environmental monitoring.
• Drinking water.
• Monitoring of UV-disinfection systems.

Features & Construction

• Housing Material: Available in Stainless steel (1.4571/1.4404) or titanium (3.7035).
• Measurement Technology: Light source is 2 LED (254 nm, 530 nm) with a Photodiode detector.
• Cleaning: Compressed air flushing, with a standard G1/8" thread for connection (optional connector for 6mm tube is available).
• Optical Path Options: Available in 0.3, 1, 2, 5, 10, and 50mm.
• Connectivity: Available with a fixed cable or Subcon connector.

Technical Specifications

Parameter	Unit	Measurement Range (10 mm path)
SAC 254	1/m	0.5...150
CODeq	mg/L	0.8...220
BODeq	mg/L	0.25...70
TOCeq	mg/L	0.3...90

Specification	Value
Measurement Principle	Attenuation, transmission, LED technology
Repeatability	0.2%
Reaction Time T100	less than 4 s
Pressure / Flow	3 Bar max (In flow cell 1 bar, 2 ... 4 L/min)
Protection Type	IP68
Power Supply / Consumption	12 ... 24 VDC (+/- 10%) / less than 7 W

Installation & Maintenance

• Cleaning: Supported by compressed air flushing for long operating times without manual cleaning.
• Required Supervision: Less than 0.5 h/month (typical).
