Product Overview

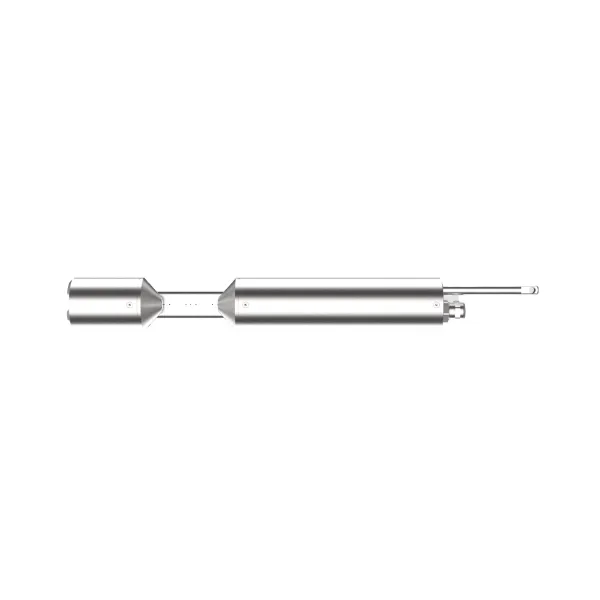

The Chemitec S480 UV Colour sensor is a low-cost device for reliable colour measurements. It features a robust, modular design that allows for adaptable optical path lengths, covering a wide range of applications. The sensor uses two different LEDs for stable long-term measurement of SAC or colour at various wavelengths. The second channel is dedicated to turbidity/background correction. The housing is made of robust materials, with an optional titanium housing available for use in aggressive media, such as those with high chloride concentrations. Low maintenance is achieved through a nano coating on the window and air blast cleaning capability.

Key Benefits

• Low investment and low maintenance costs.
• Uses two LEDs for stable, long-term measurement.
• Features a dedicated second channel for automatic turbidity compensation.
• Modular design allows optical path lengths of 50, 100, 150, and 250 mm.
• Optional titanium housing is available for use in aggressive media.

Applications

• Environmental monitoring.
• Drinking water monitoring.
• Industrial applications.

Features & Construction

• Housing Material: Stainless steel (1.4571/1.4404) or optional titanium (3.7035).
• Measurement Technology: 2 LEDs and a Photodiode detector.
• Optical Path Lengths: 50, 100, 150, and 250 mm.
• Cleaning: Low maintenance design includes nano coating on the window and capability for air blast cleaning.
• Parameters Measured: SAC436, SAC525, SAC620, and various colour standards including Pt-Co (APHA/Hazen) and Cr-Co.
• Turbidity Compensation: Yes, at 740 nm.

Technical Specifications

Specification	Value
Accuracy	0.5%
Reaction Time T100	4 s
Pressure / Flow	3 Bar max (In flow cell 1 bar, 2 ... 4 L/min)
Protection Type	IP68
Power Supply / Consumption	12 ... 24 VDC (+/- 10%) / less than 1 W
Required Supervision	less than 0.5 h/month (typical)

Measurement Ranges (per Path Length)

Parameter	Unit	10 mm	50 mm	100 mm	150 mm	250 mm
SAC 436 nm	1/m	0.5...150	0.1...30	0.05...15	0.03...10	0.02...6
Pt-Co-Color 455 nm	mg/L Pt	20...5500	4...1100	2.0...550	1.5...360	0.8...220
Turbidity 740 nm	FAU	3...330	0.6...60	0.3...30	0.2...20	0.12...12
