Product Overview

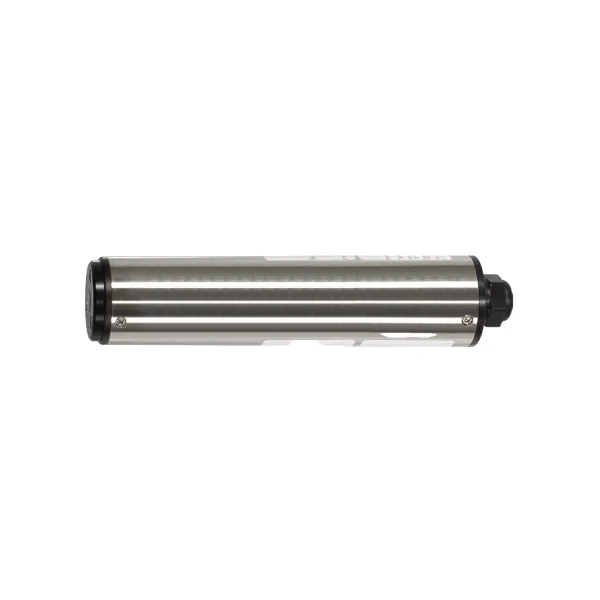

The Chemitec S480 UV CHL is a miniaturised, submersible fluorimeter. It is designed for the selective and highly precise measurement of substances such as Chlorophyll a, CDOM (coloured dissolved organic matter, yellow substances), phycocyanin in cyanobacteria, rhodamine, or fluorescein. The sensor ensures long-term stability through a combination of low power consumption and an innovative anti-fouling coating on the optical window. High-performance LED technology is used for fluorescence excitation, which compensates for ageing effects and temperature influences.

Key Benefits

• High sensitivity.
• Features electronic light compensation.
• Compact size.
• Utilises Nano-coating on the optical window for anti-fouling.
• The calibration/maintenance interval is 24 months.

Applications

• Monitoring of sea and river water.
• Drinking water production and treatment.
• Raw water treatment.
• Environmental monitoring.
• Bathing lakes.

Features & Construction

• Housing Material: Available in Stainless steel (1.4571/1.4404) or titanium (3.7035).
• Measurement Technology: Uses an LED light source and a Photodiode detector.
• Measurement Principle: Fluorescence.
• Protection: IP68 protection type.
• Dimensions: The main body has a diameter of 36 mm and a length of 171 mm.

Technical Specifications

Specification	Value
Parameters / Measuring Ranges	CDOM, Chlorophyll a, Phycocyanin, Rhodamine, Fluorescein
Measurement Range (Examples)	0...200 ug/L (CDOM, Chlorophyll a, Phycocyanin, Rhodamine, Fluorescein) or 0...500 ug/L (Chlorophyll a, Phycocyanin)
Accuracy	+/- 5%
Reaction Time T100	6 s
Pressure / Flow	3 Bar max (In flow cell 1 bar, 2 ... 4 L/min)
Interface	RS 485
Power Supply / Consumption	12 ... 24 VDC (+/- 10%) / less than 1 W
Protection Type	IP68

Installation & Maintenance

• Required Supervision: Less than 0.5 h/month (typical).
• Calibration/Maintenance Interval: 24 months.
