Technical documents and specifications for this product.
IPL_EFCON_vacuum_samplers_2023

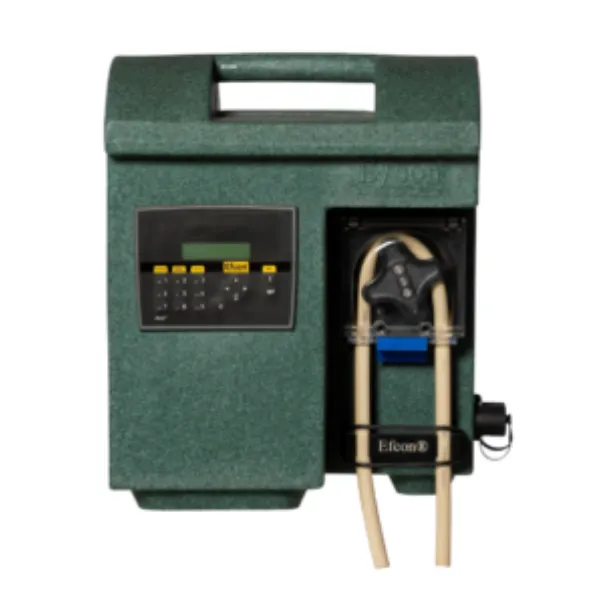

The Efcon Carrybox is a wall-mounted and easily transportable wastewater sampler suitable for various (temporary) situations. It is applicable with two different sampling techniques: vacuum or peristaltic.
The enclosures are equipped as standard with a Unitronics Jazz controller that features all standard settings. In addition, they can also be prepared for BUS systems.
According to EN 16479, EN ISO 5667, and NEN 6600-1.
Robust wastewater sampler according to the vacuum principle.
Sampling can be time or volume (pulse or flow) proportional or with a trigger contact to start/stop time-based sampling.
Basic 24-line data recording.
Standard with 8m suction hose with id 16mm, optional with id 12mm.
Parts in contact with medium: PC, PVC, SS316, Silicone.
Contact Efcon for customised solutions such as MODBUS, WI-FI, UMTS, Open channel flowmeters etc.
Maximum suction height of pump module is 8 metres.
3x diaphragm pump 24 VDC.
1x SS air valve 24 VDC.
Volume 17 L/min.
Suction height 8 metres according to EN 16749.
According to EN 16479 and EN ISO 5667.
Simple peristaltic wastewater sampler according to the ‘peristaltic vacuum principle’ with a DN 9 hose.
Sampling can be by time or volume (pulse or flow), proportional or with a trigger contact to start/stop ‘time-based sampling’.
Bidirectional peristaltic pump, simple and convenient.
Basic 24-line data recording.
Standard with 8m suction hose with id 16mm, optional with id 12mm.
Parts in contact with medium: sample tube and PVC.
Note! For use in heavy-duty applications, we recommend using vacuum samplers over peristaltic samplers. Peristaltic samplers are used more (worldwide) for portable R&D projects. Vacuum samplers have superior reproducibility, while peristaltic samplers can take a larger sample shot volume.
Top-quality wastewater sampler.
Designed with a minimum of fragile parts.
Suitable for vacuum and peristaltic sampling.
Patented, extremely robust, chemically resistant, and stable thermoplastic housing.
Specially built for harsh environments (4-year warranty on the housing).
Use of 24 VDC standard components for safe operation and easy worldwide service support.
