Key Benefits


• Easily and securely connects plain-ended pipes to flanged components.

• Accommodates both PN 10 and PN 16 flanges.

• Durable Ductile Iron (GGG50) construction.

• Fitted with Carbon steel with DACROMAT coating for high corrosion resistance.

• Maximum working temperature of 70 degrees C.

• Conforms to the requirements of EN 545 PN 16.

Applications


• Connecting plain-ended watermains to flanged components.

• Systems requiring a flexible connection to various pipe outside diameters.

Features & Construction


• Applicable Standards: Conforms to EN 545 PN 16, Flange Drilling to EN1092.

• Accommodates both PN 10 and PN 16 flanges.

• Maximum Working Temperature: 70 degrees C.

• Materials:

  • Body Material: Ductile Iron (GGG50).

  • End Rings: Ductile Iron (GGG50).

  • Gasket: EPDM as standard.

  • Bolts/Nuts: Carbon steel with DACROMAT coating for high corrosion resistance.

  • Finish: Fully epoxy powder coated on all surfaces (Resicoat).



Technical Specifications

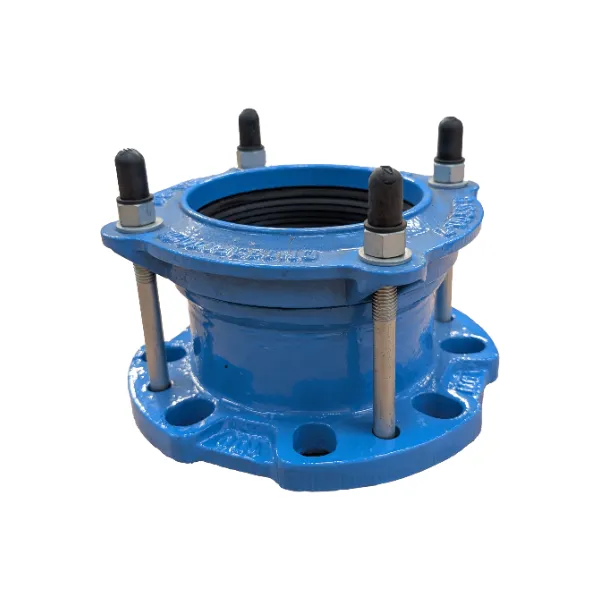

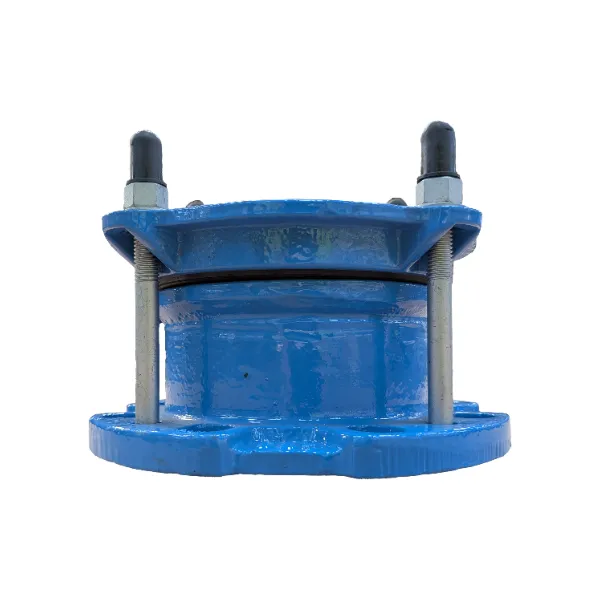

BRENT Wide Range Flange Adaptors are available in the following sizes and ranges:



DN (mm)	Flange Size (mm)	Pipe OD Range (mm)
50	50	59-73
80	80	88-103
100	100	108-128
125	150	132-146
125	150	138-153
150	150	158-181
200	200	218-235
250	250	272-289
300	300	322-339
