Product Overview

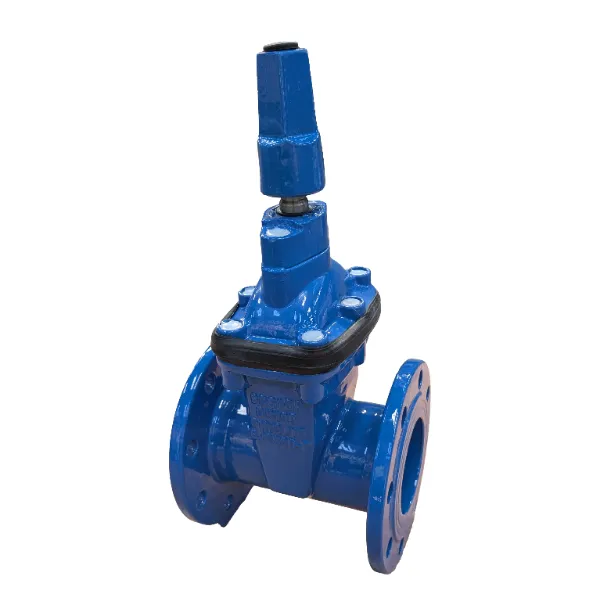

The BRENT Sluice Valve is a third-generation, non-rising, resilient-seated gate valve. It is designed and manufactured to ensure a long service life, and its reliable performance makes it suitable for a variety of applications involving water and other neutral liquids. All internal coatings and rubber parts are compliant with drinking water standards.

Key Benefits


• Third-generation, non-rising, resilient-seated gate valve.

• Ensures a long service life and reliable performance.

• Suitable for water and other neutral liquids.

• All internal coatings and rubber parts are compliant with drinking water standards and based on WRAS Certification.

• Maximum working pressure of 16 bar.

• Working temperature range is -20°C to 80°C.

Applications


• Fluid control in water and other neutral liquid applications.

Features & Construction

Design & Standards: Manufactured in accordance with flange connection standard DIN28604-DIN28606, and face-to-face length standard DIN3202. The valve test standard is EN558-1.


• Body: GJS500-7.

• Bonnet: GJS500-7.

• Wedge: EPDM/GJS500-7.

• Stem: 2Cr13.

• Stem nut: CW617.

• Sealing nut: CW617.

• Stem sheath: PTFE.

• Dust Ring: EPDM.

• Sealing Ring: EPDM.

• Gasket: NBR/EPDM.

• Reverse seal ring: NBR/EPDM.

Technical Specifications

BRENT Sluice Valves are rated for a maximum working pressure of 16 bar and are compliant with drinking water standards.



DN (mm)	L (mm) [BS5163]	h (mm)
50	178	230
80	203	290
100	229	335
150	267	415
200	292	510
250	330	600
300	356	690
