Technical documents and specifications for this product.
BRENT Short Radius Bends Datasheet
BRENT Brochure
The BRENT Short Radius Bend is a durable pipe fitting, manufactured from ductile iron, designed for reliable changes in direction within pipeline systems[cite: 22, 27]. It is available in a range of angles and conforms to the requirements of EN 545 PN 16, with Flange Drilling to EN1092[cite: 24]. The bend features a minimum 250µm Epoxy Coating, inside & outside, which is WRAS approved[cite: 25, 28].
BRENT Short Radius Bends are available in the following DN sizes and angles (R), with corresponding length (L in mm):
| R (degrees) | DN (mm) | L (mm) |
|---|---|---|

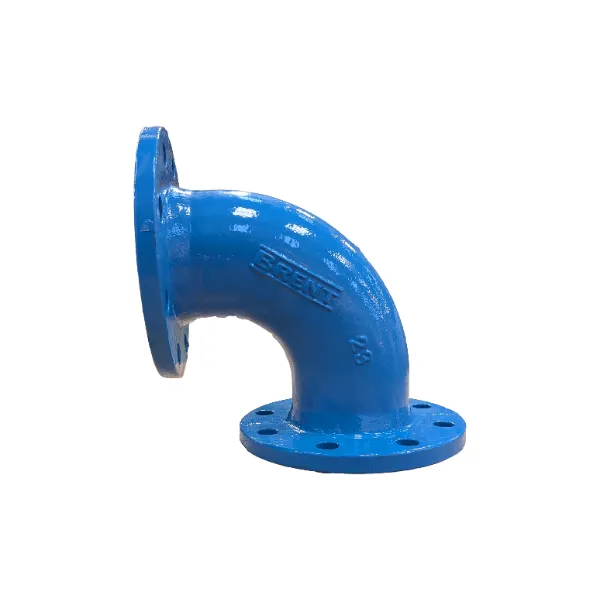

| 90 | 50 | 150 |
| 90 | 80 | 165 |
| 90 | 100 | 180 |
| 90 | 150 | 220 |
| 90 | 200 | 260 |

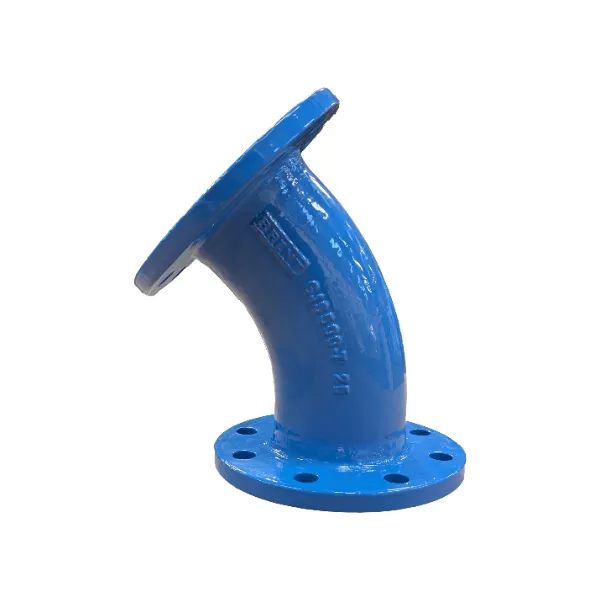

| 45 | 50 | 150 |
| 45 | 80 | 165 |
| 45 | 100 | 180 |
| 45 | 150 | 220 |

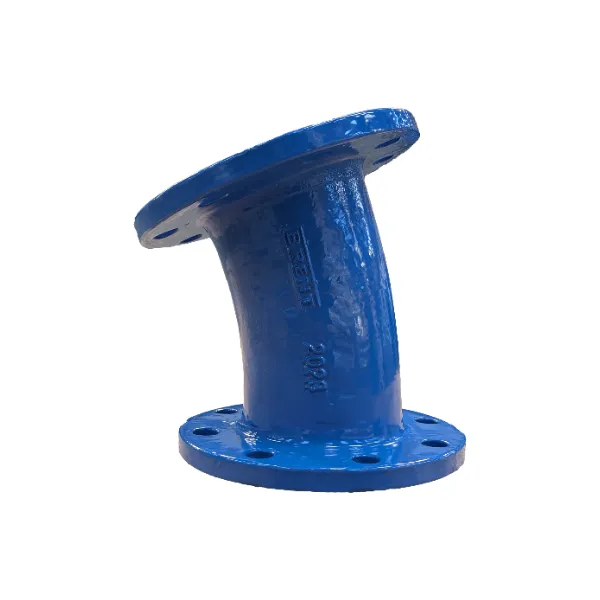

| 22.5 | 80 | 165 |
| 22.5 | 100 | 180 |
| 22.5 | 150 | 220 |
| 11.25 | 80 | 165 |
| 11.25 | 100 | 180 |
| 11.25 | 150 | 220 |
