Product Overview

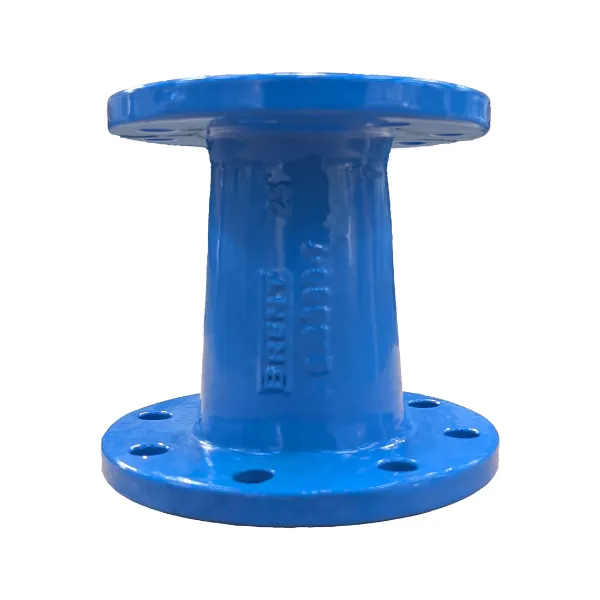

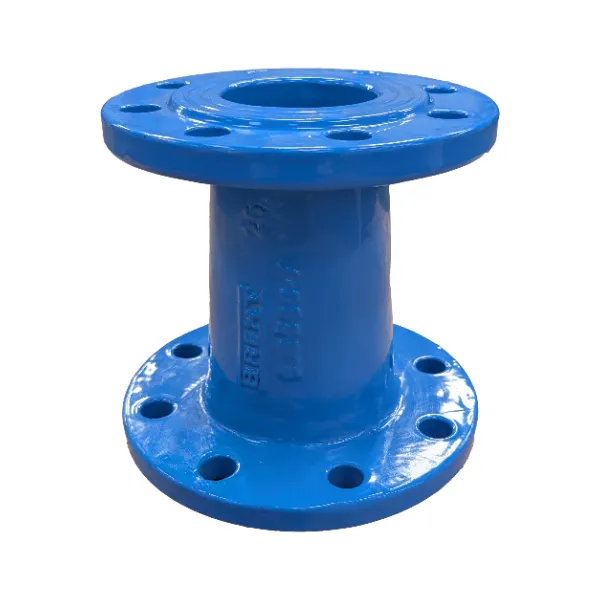

The BRENT DOUBLE FLANGED RISER is a durable pipe fitting, manufactured from ductile iron, designed for reliable connections in flanged pipeline systems where a change in elevation or vertical run is required. It is fully epoxy coated inside and out, ensuring robust corrosion resistance. The fitting conforms to the requirements of EN 545 PN 16, with Flange Drilling to EN1092, and features a WRAS approved coating.

Key Benefits


• Manufactured from GGG50 Ductile Iron.

• Conforms to EN 545 PN 16.

• Finish is a Minimum 250µm Epoxy Coating, Inside & outside.

• Coating is WRAS approved.

• Provides a precise dimensional length (L) for vertical pipe runs.

Applications


• Flanged pipeline systems requiring set lengths for vertical connections or changes in elevation.

Features & Construction


• Body Material: GGG50 Ductile Iron.

• Applicable Standards: Conforms to EN 545 PN 16.

• Flange Drilling: EN1092.

• Finish: Minimum 250µm Epoxy Coating, Inside & outside.

Technical Specifications

BRENT Double Flanged Risers are available in the following nominal diameters (DN) and lengths (L), all dimensions in mm:



DN (mm)	L (mm)
80	150
80	300
80	500
80	1000
100	150
100	300
100	500
100	1000
150	150
150	300
150	500
150	1000
