Product Overview

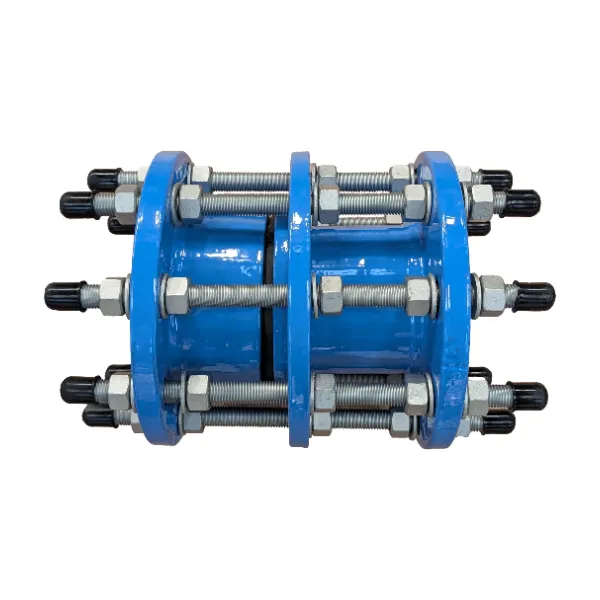

The BRENT Dismantling Joint is a double flanged fitting specifically designed to allow longitudinal adjustments in flanged pipe systems. This innovative joint ensures easy assembly and disassembly of flange-fittings without the need for additional mounting screws, thanks to its continuous threaded bars. It provides flexibility for installation and maintenance, enabling precise length adjustments.

Key Benefits

• Allows longitudinal adjustments in flanged pipe systems.
• Facilitates easy assembly and disassembly of flange-fittings.
• Utilises continuous threaded bars, eliminating the need for additional mounting screws.
• Provides flexibility for installation and maintenance.

Applications

• Flanged pipe systems requiring longitudinal adjustments for installation or maintenance.
• Integration into existing or new pipeline networks where ease of assembly and disassembly is critical.

Features & Construction

• Fitting Type: Double flanged.
• Longitudinal Adjustment: Face to face L (adjustable by +/- 25mm).
• Flange connection dimensions: In accordance with EN 1092-2.
• Materials:
  • Flanges: Ductile iron/steel, epoxy powder coated.
  • Retaining flange: Steel, epoxy powder coated.
  • Sealing Ring: Elastomer.
  • Threaded Bar: Galvanised steel, epoxy powder coated.
  • Bolts: Galvanised steel.

Technical Specifications

BRENT Dismantling Joints are available in various nominal diameters (DN) and are designed to accommodate flange connections in accordance with EN 1092-2, with pressure ratings including PN10, PN16, and PN25 (PN40 on request).

DN (mm)	A	B	C	H (mm)
50	165	50	65	155
65	185	65	80	155
80	200	80	95	180
100	225	100	114	155
125	255	125	141	160
150	285	150	166	165
200	340	200	217	160
250	400	250	268	160
300	455	300	319	180
350	520	350	370	180
400	580	400	421	180
500	715	500	518	180
600	840	600	618	180
