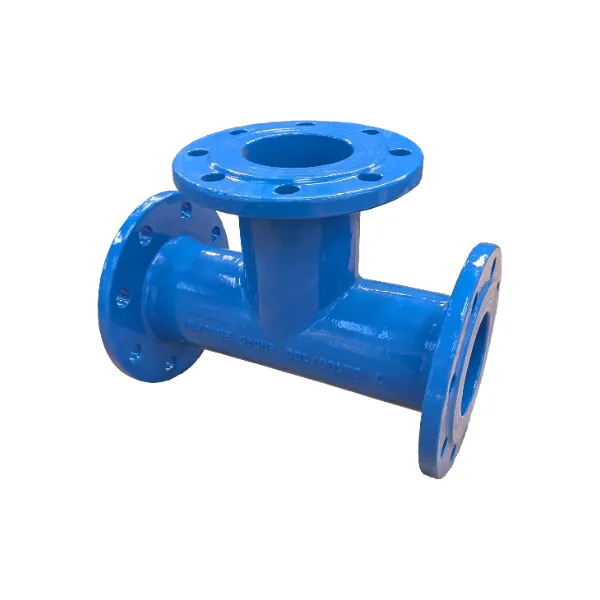

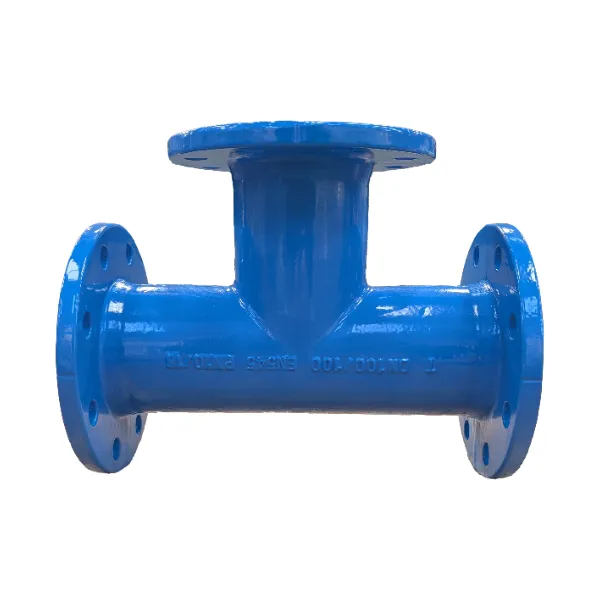

BRENT All Flanged Tee

Key Benefits

Manufactured from GGG50 Ductile Iron.
Conforms to EN 545 PN 16.
Finish is a Minimum 250µm Epoxy Coating, Inside & outside.
Coating is WRAS approved.
Designed to create branch connections (DN2) from the main pipeline (DN1).

Applications

Flanged pipeline systems requiring permanent branch connections.
Suitable for water pipeline applications.

Features & Construction

Body Material: GGG50 Ductile Iron.
Applicable Standards: Conforms to EN 545 PN 16.
Flange Drilling: EN1092.
Finish: Minimum 250µm Epoxy Coating, Inside & outside.

Technical Specifications

BRENT All Flanged Tees are available in the following nominal diameters (DN1 and DN2), with corresponding overall length (L) and height (H), all dimensions in mm.

DN1 (mm)	DN2 (mm)	L (mm)	H (mm)
50	50	300	150
80	50	330	140
80	80	330	165
100	50	360	170
100	80	360	175
100	100	360	180
150	80	400	205
150	100	400	210
150	150	400	220
200	80	520	235
200	100	520	240
200	150	520	250
200	200	520	260
250	100	660	270
250	150	660	300
250	200	700	325
250	250	700	350

BRENT All Flanged Tee

Key Benefits

Manufactured from GGG50 Ductile Iron.
Conforms to EN 545 PN 16.
Finish is a Minimum 250µm Epoxy Coating, Inside & outside.
Coating is WRAS approved.
Designed to create branch connections (DN2) from the main pipeline (DN1).

Applications

Flanged pipeline systems requiring permanent branch connections.
Suitable for water pipeline applications.

Features & Construction

Body Material: GGG50 Ductile Iron.
Applicable Standards: Conforms to EN 545 PN 16.
Flange Drilling: EN1092.
Finish: Minimum 250µm Epoxy Coating, Inside & outside.

Technical Specifications

BRENT All Flanged Tees are available in the following nominal diameters (DN1 and DN2), with corresponding overall length (L) and height (H), all dimensions in mm.

DN1 (mm)	DN2 (mm)	L (mm)	H (mm)
50	50	300	150
80	50	330	140
80	80	330	165
100	50	360	170
100	80	360	175
100	100	360	180
150	80	400	205
150	100	400	210
150	150	400	220
200	80	520	235
200	100	520	240
200	150	520	250
200	200	520	260
250	100	660	270
250	150	660	300
250	200	700	325
250	250	700	350

DN1 (mm)	DN2 (mm)	L (mm)	H (mm)
50	50	300	150
80	50	330	140
80	80	330	165
100	50	360	170
100	80	360	175
100	100	360	180
150	80	400	205
150	100	400	210
150	150	400	220
200	80	520	235
200	100	520	240
200	150	520	250
200	200	520	260
250	100	660	270
250	150	660	300
250	200	700	325
250	250	700	350

DN1 (mm)	DN2 (mm)	L (mm)	H (mm)
50	50	300	150
80	50	330	140
80	80	330	165
100	50	360	170
100	80	360	175
100	100	360	180
150	80	400	205
150	100	400	210
150	150	400	220
200	80	520	235
200	100	520	240
200	150	520	250
200	200	520	260
250	100	660	270
250	150	660	300
250	200	700	325
250	250	700	350

DN1 (mm)	DN2 (mm)	L (mm)	H (mm)
50	50	300	150
80	50	330	140
80	80	330	165
100	50	360	170
100	80	360	175
100	100	360	180
150	80	400	205
150	100	400	210
150	150	400	220
200	80	520	235
200	100	520	240
200	150	520	250
200	200	520	260
250	100	660	270
250	150	660	300
250	200	700	325
250	250	700	350

DN1 (mm)	DN2 (mm)	L (mm)	H (mm)
50	50	300	150
80	50	330	140
80	80	330	165
100	50	360	170
100	80	360	175
100	100	360	180
150	80	400	205
150	100	400	210
150	150	400	220
200	80	520	235
200	100	520	240
200	150	520	250
200	200	520	260
250	100	660	270
250	150	660	300
250	200	700	325
250	250	700	350
