Technical documents and specifications for this product.
BRENT All Flanged Concentric Taper Datasheet
BRENT Brochure

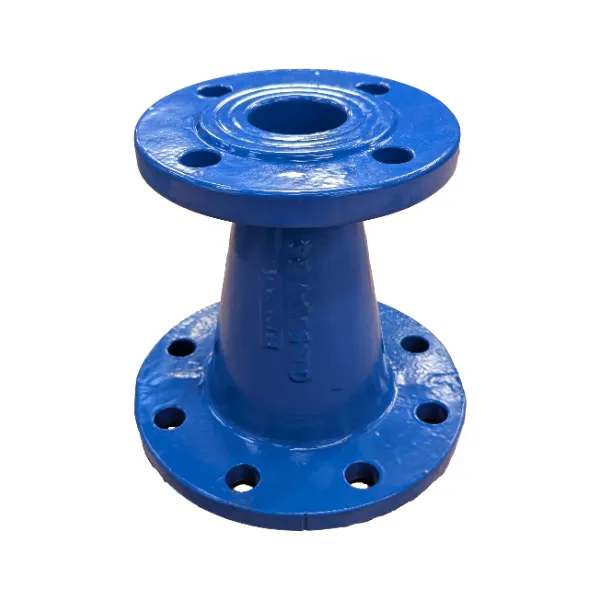

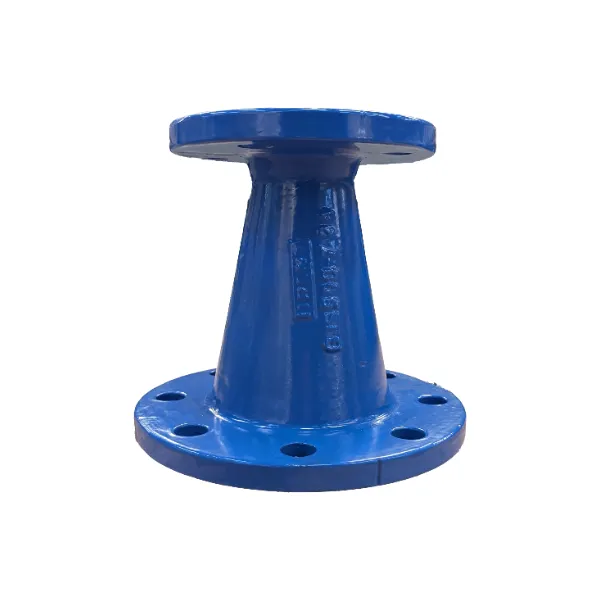

The BRENT ALL FLANGED CONCENTRIC TAPER is a durable pipe fitting, manufactured from ductile iron, designed for reliably changing pipe diameters in flanged pipeline systems. It is fully epoxy coated inside and out, ensuring robust corrosion resistance. The fitting conforms to the requirements of EN 545 PN 16, with Flange Drilling to EN1092, and features a WRAS approved coating.
Manufactured from GGG50 Ductile Iron.
Conforms to EN 545 PN 16.
Finish is a Minimum 250µm Epoxy Coating, Inside & outside.
Coating is WRAS approved.
Allows for reliable reduction of pipe diameters in concentric configurations.
Flanged pipeline systems requiring reduction of pipe diameter.
Body Material: GGG50 Ductile Iron.
Applicable Standards: Conforms to EN 545 PN 16.
Flange Drilling: EN1092.
Finish: Minimum 250µm Epoxy Coating, Inside & outside.
BRENT All Flanged Concentric Tapers are available in the following nominal diameter combinations (DN - larger diameter, dn - smaller diameter), all dimensions in mm:
DN (mm)dn (mm)805010050100801508015010020080200100200150250150250200
