Product Overview

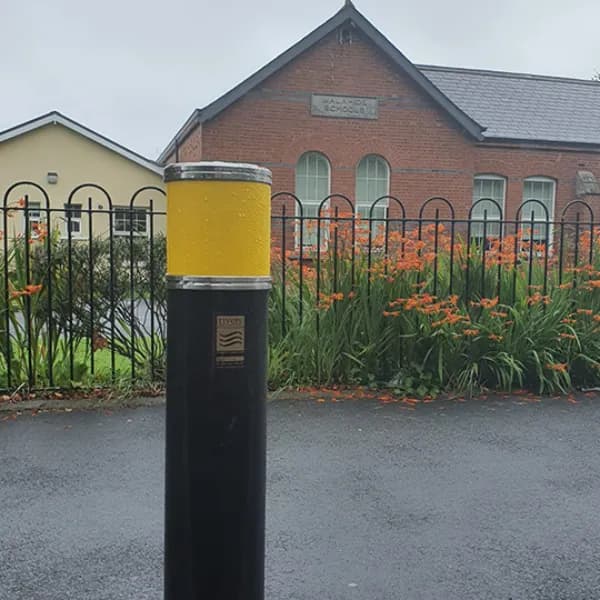

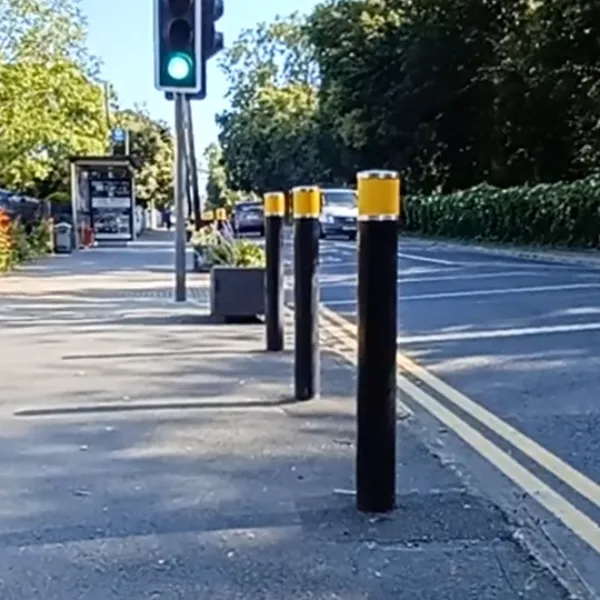

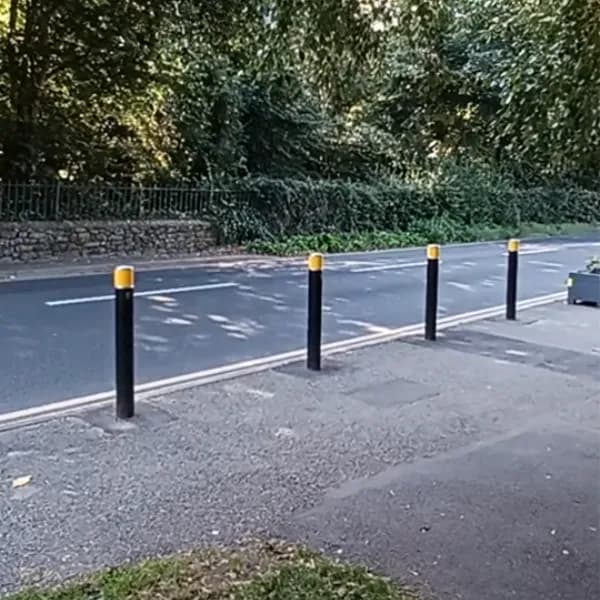

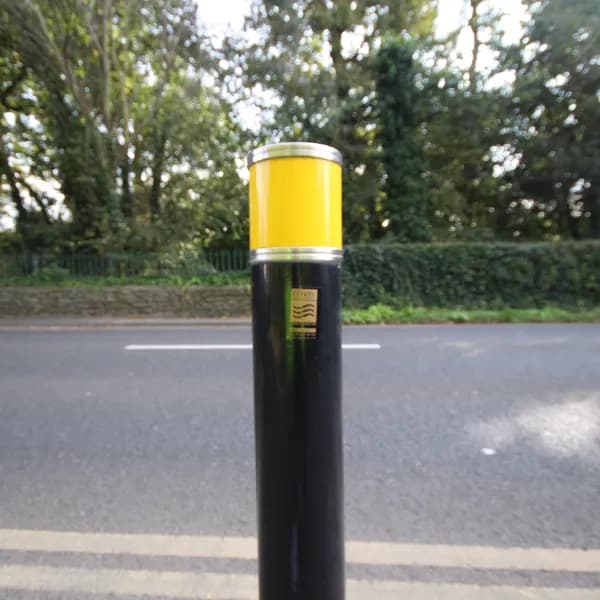

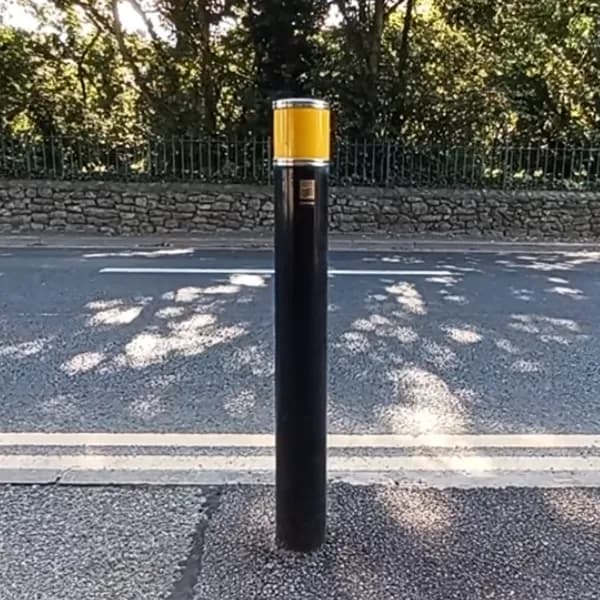

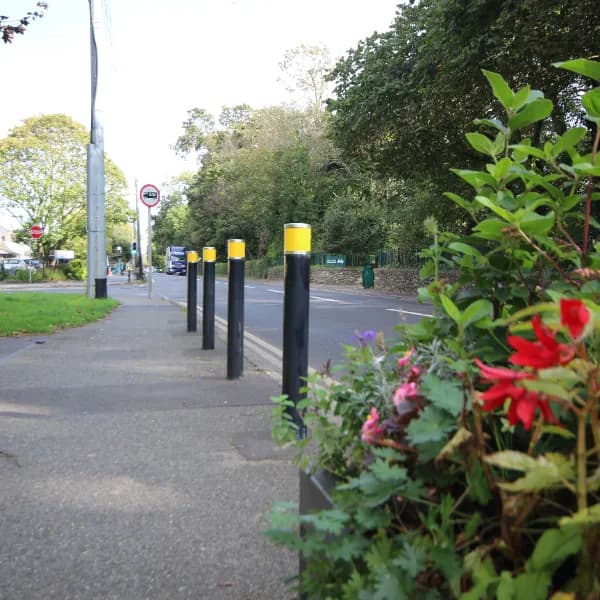

The Bradogue Bollard, from the Rivers street furniture range by IPL group, is a contemporary design bollard with a distinctive cap and elegant stainless steel embellishments. Suitable for both town and rural landscapes, it's an ideal choice for new developments and upgrades of existing streetscapes, offering a modern and refined aesthetic.

Key Benefits

• Contemporary & Distinctive Design: Features a modern style with eye-catching stainless steel embellishments and a distinctive cap, offering a unique and sophisticated aesthetic.
• Durable Construction: Built with a strong galvanised steel post and robust stainless steel components, ensuring exceptional resilience and a long service life.
• Customisable Appearance: Offers various options including one, two, or three ring configurations, alternate top colouring, and contrasting sections in any RAL colour or with reflective tape, allowing for tailored aesthetics.
• Versatile Installation: This bollard can be specified for both ground-fixed permanent installation and removable installation using the RS115x300 socket, providing flexibility for diverse site requirements.

Applications

The Bradogue bollard is suitable for a range of applications, including:

• Town and city centre enhancements.
• Rural landscape integration.
• New developments and upgrades of existing streetscapes.
• Access control installations where flexibility and modern design are desired.

Features & Construction

• Strong galvanised steel post core.

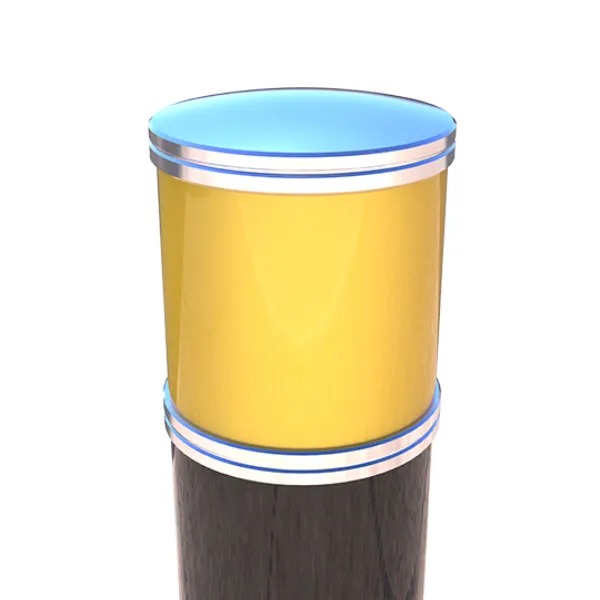

• Stainless steel embellishments and a distinctive cap.
• Standard black polyester powder-coated finish.
• Contrasting section available in any RAL colour or with reflective tape on request.
• Available in both ground-fixed and removable configurations.
• Removable option compatible with the RS115x300 Retention System socket.
• Standard height of 1000mm above ground.
• Standard depth below ground is 300mm.
• Core post diameter of Ø115mm.

Customisation Options

• One, two, or three ring options for the embellishments.
• Alternate top colouring options.
• 3M diamond grade reflective tape for increased visibility.
• Customer colour requirements to any RAL colours.
• Reinforced core post for enhanced impact resistance.
• Stainless steel body available on request.
• RS socket (for removable & locking option).

Technical Specifications

Specification	Value
Height (above ground)	1000mm
Depth (below ground)	300mm
Diameter (core post)	Ø115mm
Installation Type	Fixed/Removable
RS socket option	RS115x300
Total Weight (approx.)	19kg

Installation & Maintenance

• Fixed Installation: Direct burial to 300mm depth provides a secure, permanent fixture.
• Removable Installation: The RS115x300 Retention System socket allows for quick installation and removal, anticipating installation demands, maintenance needs, and lifecycle flexibility.
• Maintenance: The durable construction and polyester powder-coated finish minimize maintenance needs. Periodic inspection and cleaning are recommended.
