Product Overview

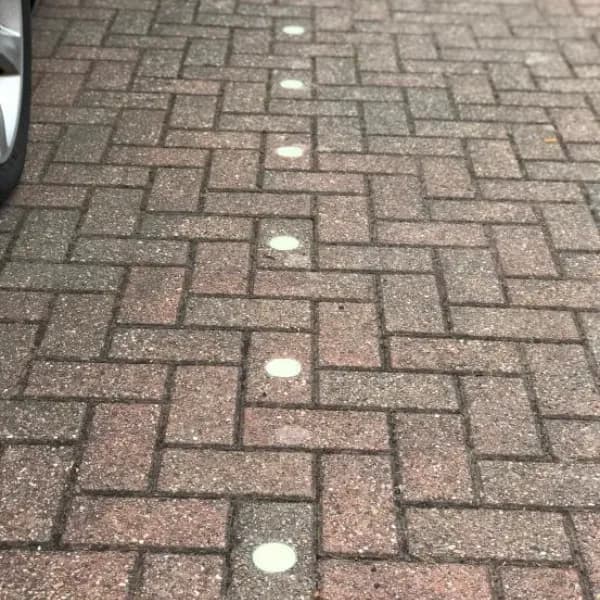

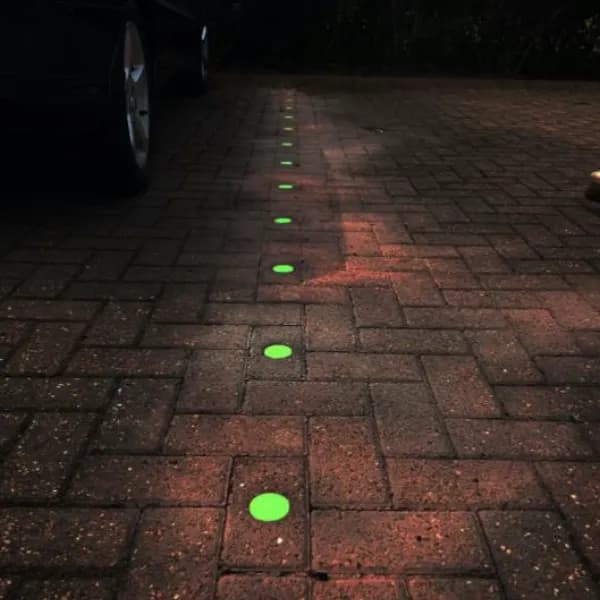

The i-glo Bay Markers from IPL group are photoluminescent disc markers that absorb light during the day and emit an 'after glow' throughout the night. These markers are designed to be glued in flush with the surface (tarmac, block paving, or concrete) within a 50mm circular recess, providing visibility all night without electricity or maintenance. Their simple adhesive installation makes them quick to install with minimal specialized tools.

Key Benefits

• Photoluminescent Technology: Provides visibility all night without the need for electricity or ongoing maintenance.
• Seamless & Trip-Free Integration: Features a 50mm flush design that integrates seamlessly with existing surfaces, ensuring a smooth and trip-free installation.
• Multi-Surface Compatibility: Works equally well on tarmac, block paving, or concrete.
• Simple & Quick Installation: Can be quickly installed with a standard caulking gun and minimal specialized tools, with a cure time of 1 hour for the adhesive.
• Weather-Resistant Construction: Maintains performance in various environmental conditions.
• High Slip Safety: Achieves a Pendulum Test Value (PTV) of 58, indicating a low slip risk (less than 1 in 1 million probability), significantly exceeding the HSE recommended minimum of 36 PTV.

Applications

The Bay Markers are ideal for enhancing visibility and guidance in outdoor spaces, particularly where continuous illumination without external power is desired, such as:

• Demarcating areas in car parks or public spaces.
• Guiding pedestrians or vehicles in low-light conditions.
• Creating visible pathways in parks or recreational areas.

Features & Construction

• Photoluminescent technology.
• 50mm diameter disc.
• 5mm height.
• Designed for flush installation with existing surfaces.
• Compatible with tarmac, block paving, or concrete.
• Color: Pale Green.
• Hardness: 0.65 mohn.

Customisation Options

• (No specific customisation options are explicitly mentioned in the provided datasheet beyond its inherent colour and size.)

Technical Specifications

Specification	Value	Source
Size	50mm (Diameter)
Height	5mm
Colour	Pale Green
Weight	11g
Box Qty.	10
Adhesive	Weather proof adhesive
Cure Time	1 hour
Hardness	0.65 mohn
Pendulum Test Value (PTV)	58 PTV (Low Slip Risk, Pass)

Installation & Maintenance

• Installation: Quick and simple adhesive installation. The process involves marking the required distance and centre hole, drilling a 7mm diameter hole (6mm deep) with hammer mode, then using an outer cutter to drill down 6mm. A core cutter is used to drill to 6mm depth. An even 2mm coat of weather-proof adhesive is applied to the base of the hole, and the glow disc is punched down to sit flush with the surface. Allow 45 minutes to 1 hour for glue to cure. IPL group provides further information and specific installation requirements.
• Maintenance: Requires no electricity, making it maintenance-free for illumination. Its weather-resistant construction ensures performance in various environmental conditions. Regular cleaning is recommended to maintain optimal glow and slip resistance.
