Product Overview

The AX-S Recessed Cover range offers high-quality access covers specifically designed for preserving the appearance of landscaped areas. These covers have a strong reputation in the construction industry for their quality, safety, and secure installation. Specified with sole approval by numerous utility providers, such as British Telecom, AX-S Recessed Covers have been installed in many high-profile landscaped projects globally. They meet the requirements of BS EN124: 1994 (B125) and relevant European and British standards, carrying the kitemark for compliance. Designed for maximum filled weights, individual covers will not exceed 78kg when filled, allowing for safe single-person lift using the lift and slide design.

Key Benefits

• High quality, safe to use, and secure when installed.
• Meets EN124 Loading Requirements, specifically B125.
• Meets relevant European and British standards and is kitemarked for compliance.
• Can be filled with any material to suit the surrounding area, as they meet test loads when unfilled.
• Bolt-down locking mechanisms can be built into the cover, preventing unauthorised access.
• Designed for maximum filled weights (under 78kg when filled) for safe single-person lift.
• Manufactured from 6mm steel, preventing bowing under the strain of filled materials.
• Bespoke sizes available, manufactured in a large range using multi-cover units.
• Tapered sides and centralised lifting points allow one person to lift and slide the cover out safely.
• Can be badged with customer information for identification by operatives.

Applications

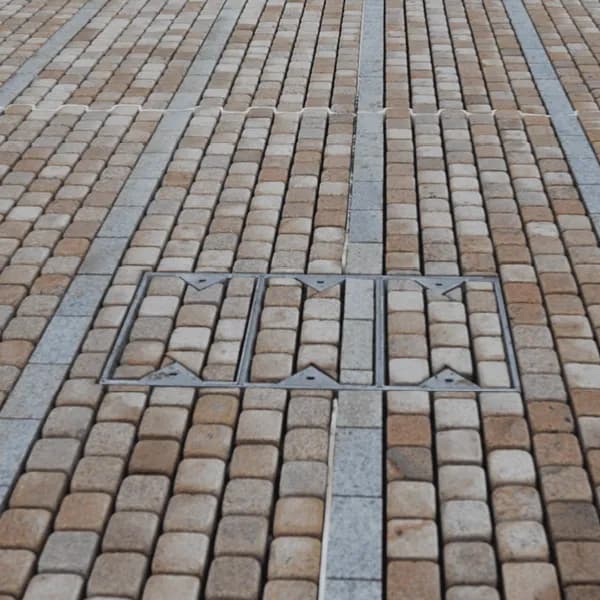

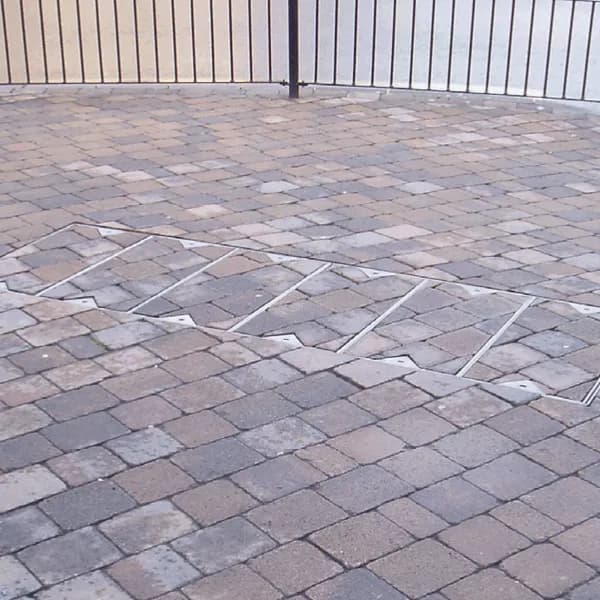

• Landscaped areas where preserving appearance is key.
• Shared spaces featuring slow-moving traffic where demarcation between pedestrians and drivers is minimised.
• Footways, pedestrian areas and comparable areas.
• Car parks or parking decks.

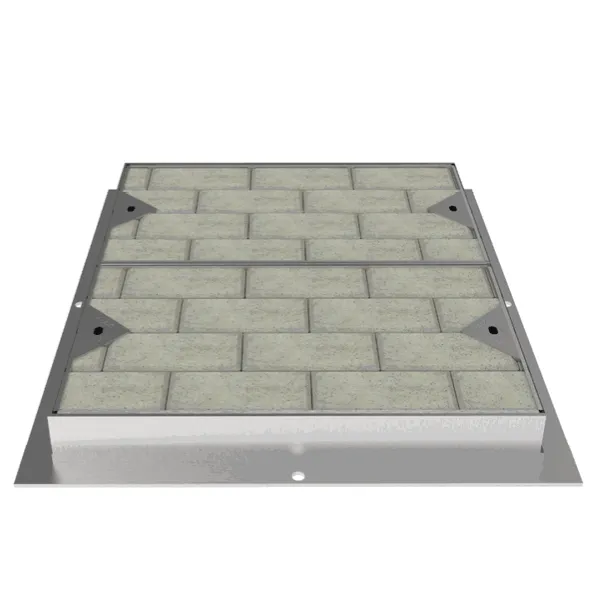

Features & Construction

• Manufactured from 6mm steel.
• Frames and cross pieces are manufactured from rolled steel section in compliance with BS1449 and galvanised in compliance with BS EN ISO 1461.
• Designed with tapered sides and centralised lifting points.

Technical Specifications

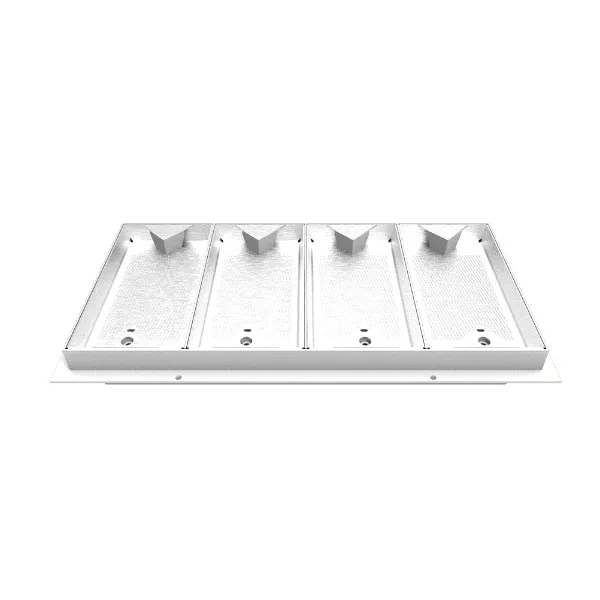

AX-S Recessed covers are available in a range of standard sizes. Bespoke covers can also be manufactured using cross-beams and cross-pieces to build multi-cover units, with options in security and badging.

Length (mm)	Width (mm)	Load Rating
300	300	B125
380	230	B125
420	240	B125
450	300	B125
450	450	B125
500	500	B125
530	380	B125
600	600	B125
675	675	B125
725	255	B125
750	600	B125
750	675	B125
750	750	B125
800	800	B125
885	530	B125
900	450	B125
900	600	B125
900	675	B125
900	900	B125
915	445	B125
915	915	B125
1000	600	B125
1000	1000	B125
1160	380	B125
1200	600	B125
1200	675	B125
1200	900	B125
1200	1200	B125
1310	610	B125
1300	850	B125
1380	530	B125
1500	750	B125
1500	1500	B125
1800	675	B125
1800	1800	B125
1900	1200	B125
2000	600	B125
2000	2000	B125
2500	1200	B125
2500	2500	B125
3000	3000	B125

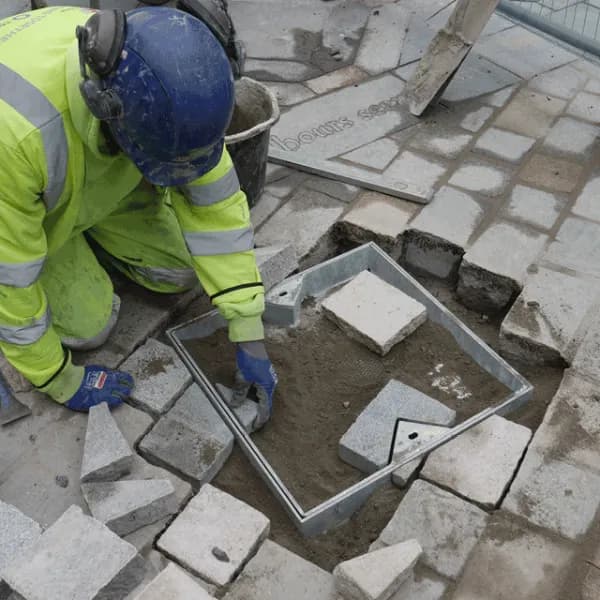

Installation & Maintenance

• Recessed Covers are designed with tapered sides and centralised lifting points to allow the cover to slide out of the frame.
• These features allow covers to be safely removed by one person.
• Cover sizes are designed to ensure safe weights, and multi-cover sets include removable crosspieces, allowing covers to be slid out safely.
