Product Overview

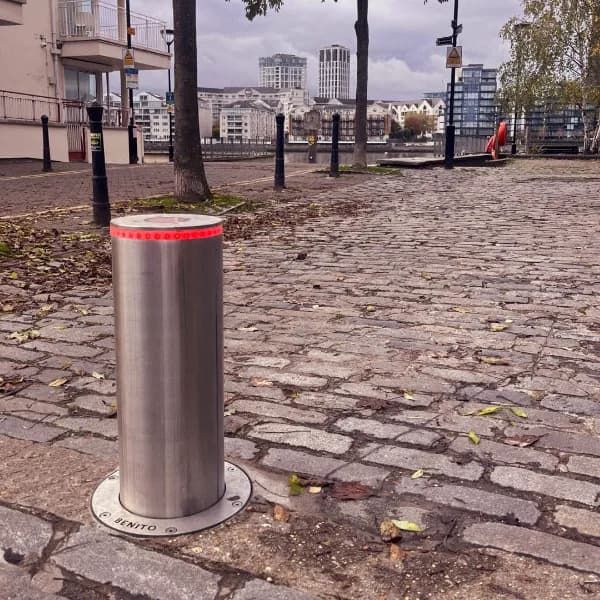

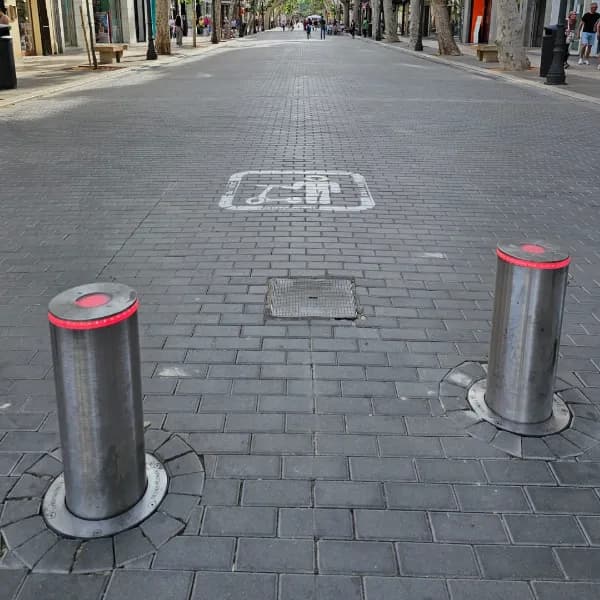

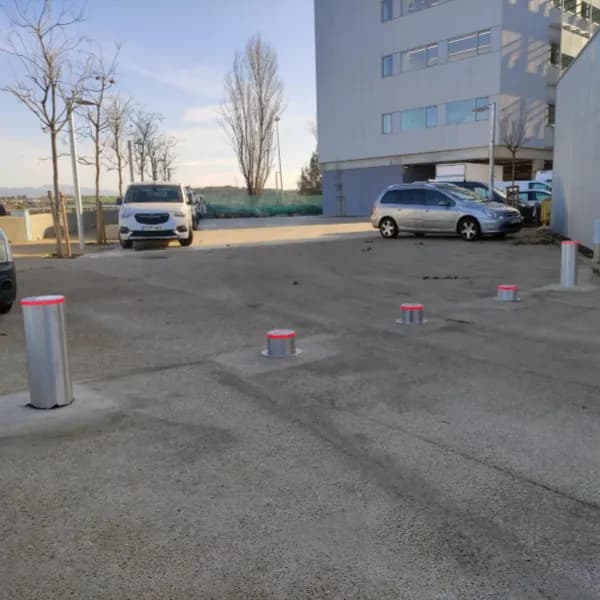

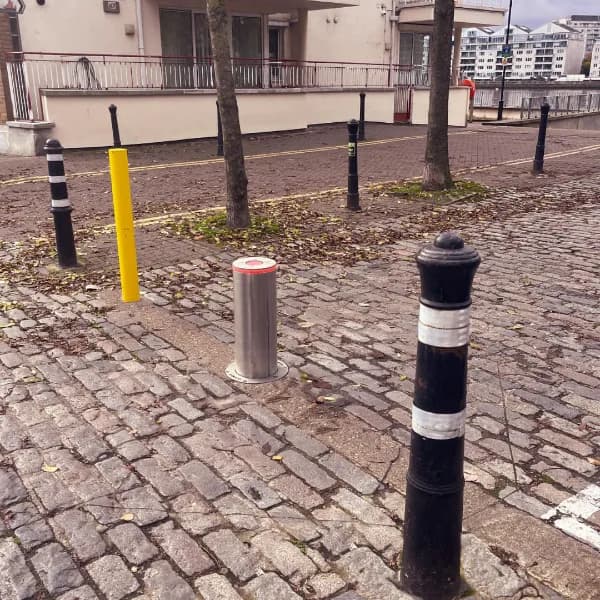

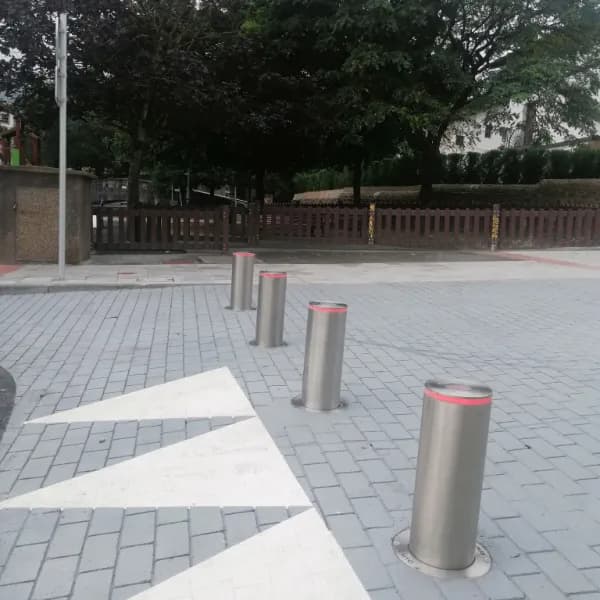

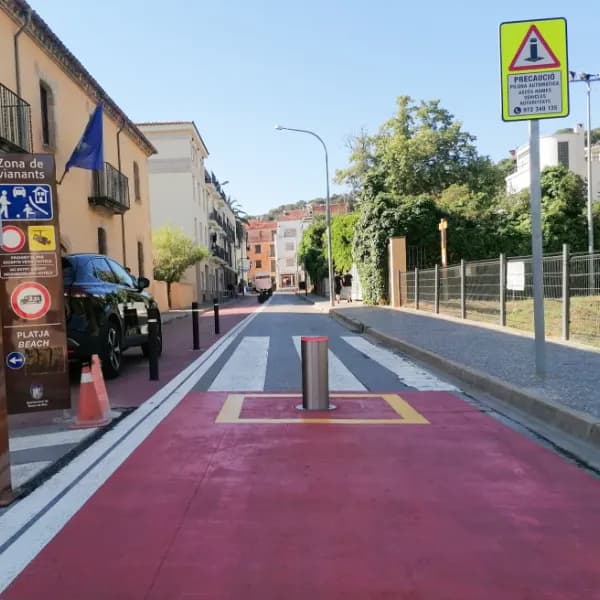

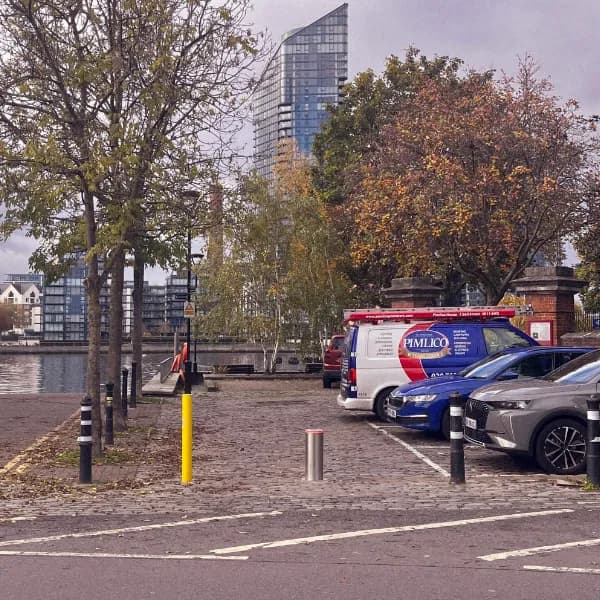

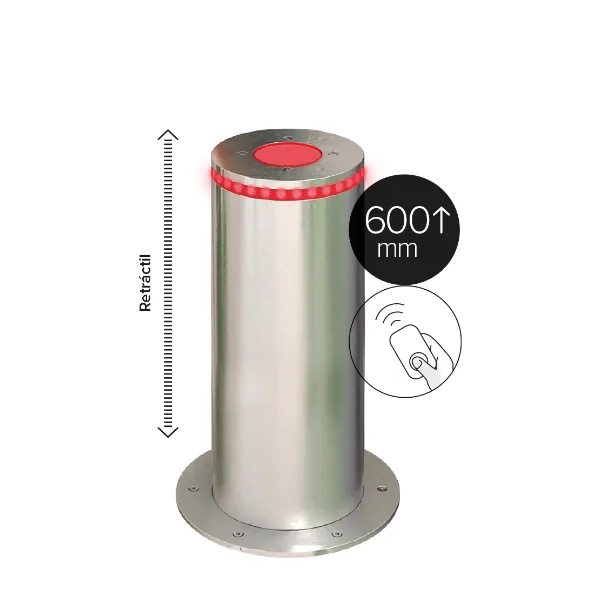

The Auto: Automatic Telescopic Bollard is designed for controlling access to public roads, communities, and companies. This automatic telescopic bollard is made with an AISI-304 satin stainless steel piston, Ø220 x 600mm height, and is available in various thicknesses. It features a top lid, chassis, fixings, and screws all made of stainless steel. For maximum visibility, it includes a red/green LED ring that functions as a traffic light. The bollard can be operated by remote control or other devices and incorporates a metal mass detector for enhanced safety. A key safety feature is its positive safety design, where the shaft tends to lower automatically if the power supply is cut. The 8mm thickness variant (H6008) is certified according to PAS 68:2013.

Key Benefits

• Designed for controlling access to public roads, communities, and companies.
• Made with durable AISI-304 satin stainless steel piston.
• Features a clear red/green LED ring with traffic light functionality for maximum visibility.
• Can be operated by remote control or other devices.
• Includes a metal mass detector for greater safety.
• Positive safety feature: shaft tends to lower if power is cut.
• 8mm thickness variant is PAS 68:2013 certified.

Applications

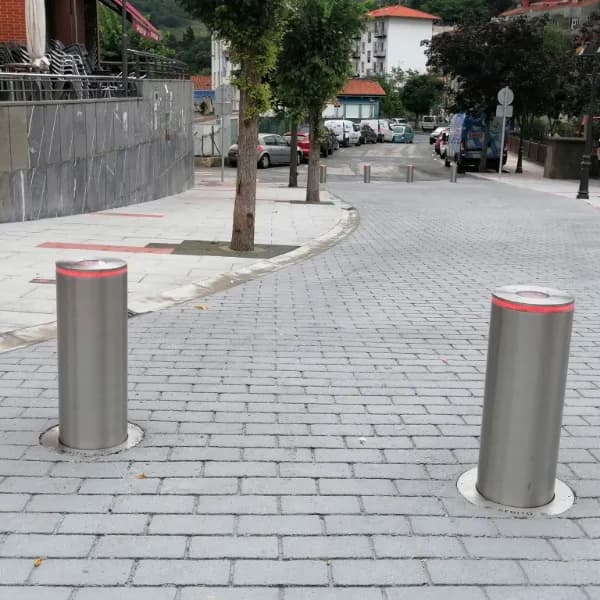

• Controlling access to public roads.
• Controlling access for communities of neighbours.
• Controlling access for companies.

Features & Construction

• Bollard Diameter: 220 mm.
• Bollard Height: 600 mm.
• Bollard Material: AISI-304 satin stainless steel piston.
• Available Bollard Thicknesses: 4 mm (reference H6004), 8 mm (reference H6008), 13 mm (reference H6013).
• Top lid, chassis, fixings, and screws made of stainless steel.

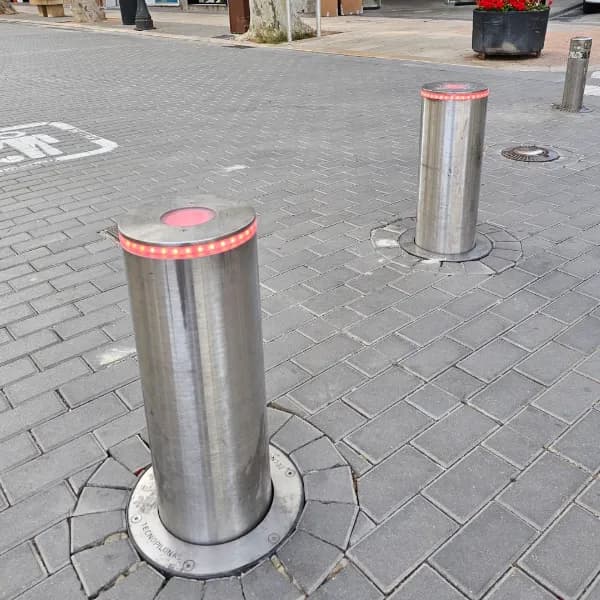

• Signage: Red/green LED ring with traffic light function.
• Safety: Metal mass detector included.

Technical Specifications

Property	H6008	H6013
Height from Ground Level	600mm	600mm
Bollard Diameter	220mm	Ø220mm
Box Dimensions	340 x 340 x 830 mm	340 x 340 x 1060 mm
Bollard Material	Stainless steel AISI 304 satin finish	Stainless steel AISI 304 satin finish
Motor Power	230V 50Hz, 300W (3,000rpm)	230V 50Hz, 300W (3,000rpm)
System Temperature Range	-20°C to +80°C	-20°C to +80°C
IP Protection Rating	IP67	IP67
Ascent Time	3-4 seconds	3-4 seconds
Lowering Time	3-4 seconds	3-4 seconds
Control Panel	BC20	BC20
Impact Resistance	100,000 Joules	750,000 Joules
Reflective Band	Optional	Optional
Safety of People and Property	Optional	Optional

Installation & Maintenance

• Bollard designed for controlling access.
• Can be operated by remote control or other devices.
• Includes metal mass detector for greater safety.
• Positive safety feature ensures lowering if tension is cut.
