Product Overview

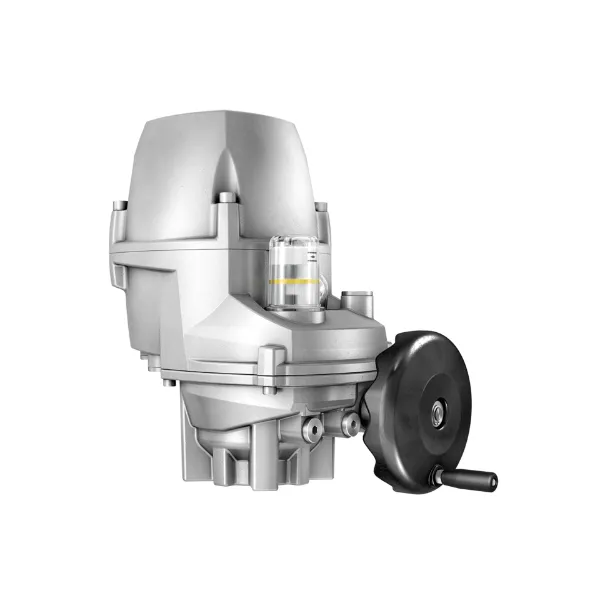

The AUMA Profox PF-M is a compact actuator platform designed for control and regulation duty on gate valves, flaps, cocks, and valves. It offers intelligent functions as a platform concept for customised automation solutions. A core feature is the FOX-EYE, a large, centrally located LED that provides clear, user-configurable information about the actuator and valve status. The actuator is housed in a robust metal casing for high durability and protection.

Key Benefits

• FOX-EYE LED: A clear, user-configurable position indicator that provides visible information on actuator and valve status.
• Intelligent Functions: Includes actuator and valve diagnostics and capabilities for predictive maintenance.
• Easy Commissioning: Features intuitive setup directly on the device or via the AUMA Assistant App.
• Robust Design: Housed in a robust metal casing with high-quality corrosion protection and the highest protection class.
• Efficiency: Low standby consumption.

Applications

• One type of actuator is suitable for gate valves, flaps, cocks, and valves.
• Ideal for applications requiring precise control and regulation operation.

Features & Construction

• Duty: Designed for control operation and regular operation.
• Motors: Features variable speed with high control accuracy.
• Power: Wide-range power supply.
• Operation: Includes a handwheel for manual operation.
• End Position Setting: Can be set directly via a button or using the AUMA Assistant App.
• Position Indicator: Mechanical position indicator with various setting ranges: 1–9 rev/stroke, 9–14 rev/stroke, and 14–27 rev/stroke.

Technical Specifications

Specification	Value / Range
Torque Range (for control & regulation)	10 Nm to 100 Nm

Interfaces

• Connectivity: IIoT-ready, allowing easy integration into control systems.
• Protocols: Supports Profibus, Modbus, and Profinet.
• Sensors: Includes position and torque measurement, as well as a position sensor.

The PROFOX PF-M offers comprehensive advantages, including its diagnostic capabilities and simple installation, making it a highly adaptable solution for automation.
