Product Overview

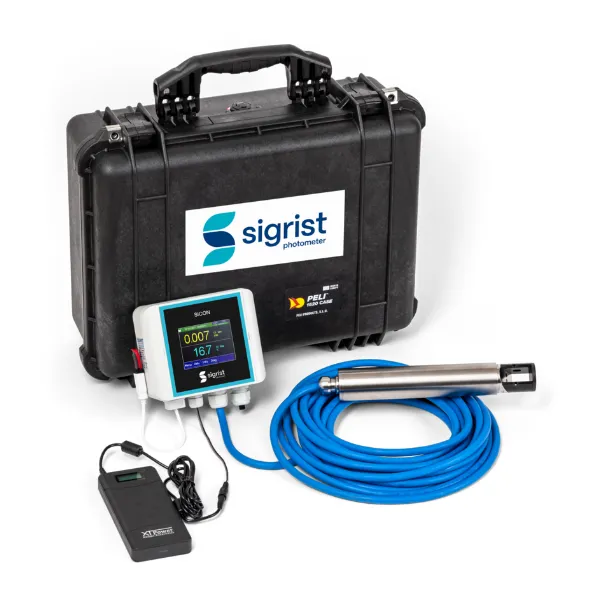

The AquaScat S Mobile is an autonomous, portable turbidity measuring device that combines continuous turbidity measurement with high mobility. It provides access to critical information about the condition of sample water throughout the water treatment and distribution process. It is a field instrument with the highest accuracy and sensitivity on the market, operating in the mFNU range. The system consists of a robust, compact case housing the measuring components and the SICON operating unit.

Key Benefits

• Offers the highest accuracy and sensitivity on the market, measuring in the mFNU range.
• Quick to set up and easy to transport due to its compact and robust case design.
• Features a mains-independent power supply with a battery life of up to 20 hours.
• Allows for precise recalibration using an optional secondary turbidity standard (solid reference) instead of Formazin.
• Suitable for sporadic measurements at critical points and verifying on-line measuring devices.

Applications

• Monitoring turbidity in the pipe network (typically less than 1.0 FNU).
• Sporadic measurements at critical points within water treatment and supply areas.
• Used when responding to customer complaints.
• Verification of existing on-line measuring devices.
• Suitable for use in open vessels/channels, sampling vessels, wells, spring shafts, and open waters like dams.

Features & Construction

• Measuring Principle: 90 degrees scattered light according to standard ISO 7027/EN27027.
• Light Source: LED 860 nm.
• Probe: Mobile submersible probe housed in Stainless Steel 1.4571, PPSU, and Sapphire, with an IP68 protection class. It includes integrated temperature measurement.
• Display Unit (SICON): A full-featured operating unit (SICON) with a 1/4 VGA, 3.5" touchscreen for displaying measured values, measurement history, and configuration settings.
• Data Logging: Data can be logged and transferred via a USB interface. The SICON unit stores data for over 32 days.
• Accessories: Comes with an absorber to suppress ambient light.

Technical Specifications

Specification	Value
Measuring Range	0 ... 4,000 FNU
Measuring Range Resolution	8 (freely programmable)
Turbidity Resolution	0.001 FNU
Probentemperatur (Sample Temp)	0 degrees C ... +60 degrees C
Pressure (Max)	10 bar @ 20 degrees C
Battery Operating Time	Max. 20 h (with 20 Ah battery capacity)

Interfaces and Certifications

• Certifications: SVGW, SSIGE, ACS (Attestation Conformité Sanitaire).
• Digital Interfaces (SICON): Ethernet, microSD card, USB A, Modbus TCP.
• Outputs (SICON): 4 x 0/4 ... 20 mA, galvanically isolated, 7 x digital.
• Optional Modules: Profinet IO, Profibus DP, Modbus RTU (available for remote operation).
