AquaScat S Datasheet

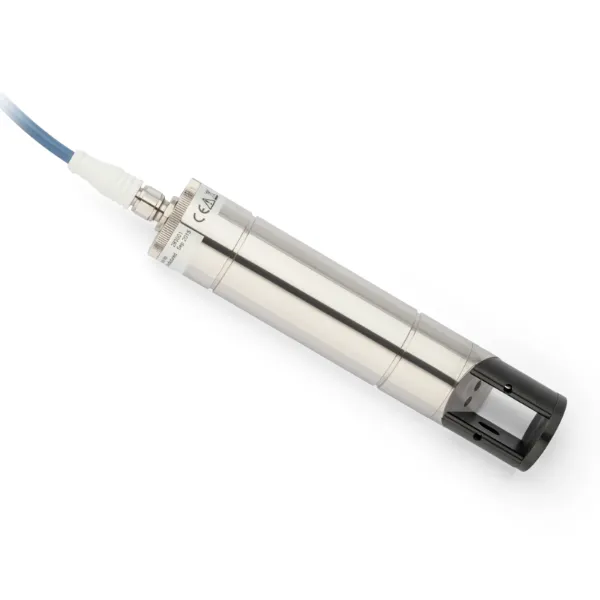

The AquaScat S offers in-line turbidity measurement for water treatment, measuring the turbidity of potable water according to IEC 27027 and the temperature directly within the water. This design minimises maintenance work and results in zero water loss. Calibration is performed using a checking unit that is installed when required. Various customer needs can be accommodated with different options for data visualisation and connection to a PLC/SCADA system. Thanks to the diverse process integration options, a solution can be found for virtually any requirement.
| Specification | Value |
|---|---|
| Measuring principle | 90° Scattered light according to ISO 7027/EN27027 |
| Nominal range | 0 .. 4‘000 FNU |
| Measuring ranges | 8, freely programmable |
| Resolution | 0.001 FNU |
| Enclosure | Stainless steel 1.4571, PPSU, sapphire |
| Protection class | IP68 (Electrical connector IP67) |
| Sample flow rate | max. 3.0 m/s |
| Sample temperature | 0 .. +60 °C |
| Temperature measurement | 0 .. +60 °C |
| Sample pressure | max. 10 bar @ 20 °C |
| Ambient temperature | 0 .. +60 °C |
| Ambient humidity | 0 .. 100 % rel. |
| Operation voltage | 24 VDC +/−10 %, galv. Isolated from housing of sensor |
| Power consumption | max. 2 W |
| Dimensions | Ø 40 × 200 mm |
| Connections | 8-wire cable: - 1 × 0/4 .. 20 mA Output - 2 × digital outputs Option Connection box Conn-R: - 1 × 0/4 .. 20 mA Output - 2 × Relays Outputs 230 VAC, 4A - Connector for SICON-C Option SICON – SICON-M: - Max. 8 × 0/4 .. 20 mA Outputs - Max. 7 × digital Outputs - Max. 5 digital Inputs - Modbus TCP - Modbus RTU - Profibus DP - Conn-A for max. 8 Sensors - Powerbox for max. 12 Relays Option WLAN: - IEEE 802.11b/g/n access with web server |
| Light source | LED 860 nm |
| Sample connector | Options: - PE tubing welded - Stainless steel tubing with flanges welded - Kit to install directly in basins - Device to retract the sensor under pressure |
| Control Units | SICON SICON M |
