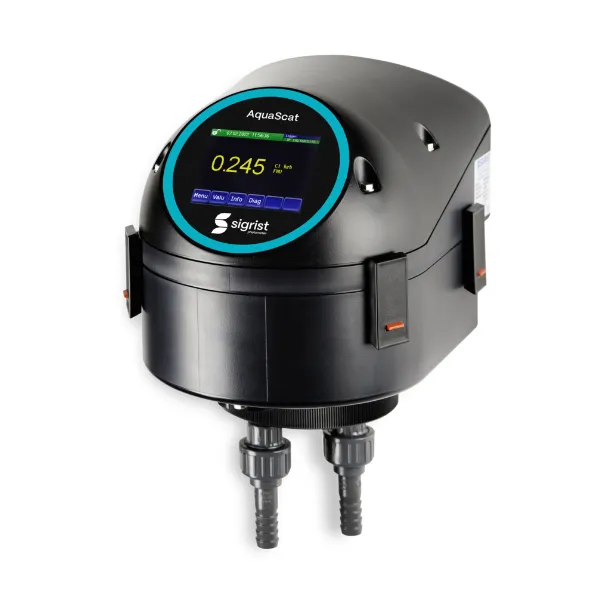

AquaScat 2 P Datasheet
The AquaScat 2 P is an on-line turbidimeter (compliant with ISO 7027) specifically designed for pressurised measurement. It measures the turbidity of potable water according to IEC 27027 and is particularly suited for installations with highly gaseous water under pressure. Calibration check is performed with a calibration unit with a glass reference that is mounted when performing the check.
| Specification | Value |
|---|---|
| Measuring principle | 90° Scattered light according to ISO 7027/EN27027 |
| Nominal range | 0 .. 100 FNU |
| Measuring ranges | 8, freely programmable |
| Resolution | 0.001 FNU |
| Protection class | IP 65 |
| Sample flow rate | 0.2 .. 2 l/min |
| Sample temperature | 0 °C .. +40 °C |
| Sample pressure | max. 10 bar @20 °C |
| Inputs | 1 x for flow meter (optional) 2 x 0/4 .. 20 mA |
| Outputs | 2x 0/4 .. 20 mA, galv. isolated 2x Relays 250 VAC, 4A |
| Ambient temperature | -10 .. +50 °C |
| Ambient humidity | 0 .. 100% rel. H. |
| Operation voltage | 18 - 30 VDC optional 100 .. 240VAC, 47 .. 63Hz |
| Dimensions (W x H x D) | 207 x 314 x 282 mm |
| Display | ¼ VGA, 3.5“ |
| Operation | Touchscreen |
| Sample inlet/outlet | Hoses of inner ø 16/16mm or GF-System G¾" Material POM/PVC |
| Light source | LED 880 nm |
