Measuring Cycle

1. Entry of the sample: The sample enters the measuring cell for washing and priming.
2. First measurement (Photometric Zero): An initial measurement is taken of the sample as is.
3. Reagent addition: Reagent is added using the peristaltic pump.
4. Reaction development: The reaction develops through stirring.
5. Colour reading (Absorbance): The colour (absorbance) is read. The differential measurement between the Zero and the Absorbance is processed by the electronic processor and converted into a concentration value, using specific correlation tables developed in our laboratories.
6. Result display and dosing control: The electronic controller displays the measured substance in mg/L and indicates whether or not to activate the dosing components designed to control or correct it.
7. Automatic calibration: The system calibration is performed automatically at each measuring cycle.

User Interface (HMI)

• Programming keypad with 4 bubble-keys.
• STN 240x128 backlit graphic LCD to display:
  • Measurements (simultaneous measurement and temperature parameter + trend line).
  • Digital output status.
  • Storage status.
  • Faults.
  • Photometric measurement phase.

Software & Functions

• Data logger of Circular (F.I.F.O.) or Filling type, on an internal 4 Mbit flash memory, equal to 16000 records, with a recording interval from 1 to 99 min.

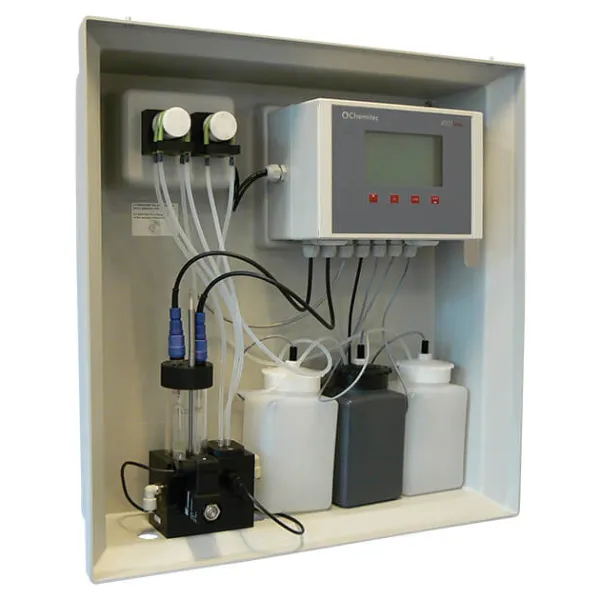

• RS485 serial output for set-up and Chemitec 4001 Series Real Time status from remote or to download stored data on a PC or laptop (using dedicated software), via MODBUS RTU communication protocol.
• Digital input for disabling dosages.

Application Fields

• Analysis of drinking and wastewater.
• Analysis of food products.
• Pharmaceuticals.
• Chemicals.
