Product Overview

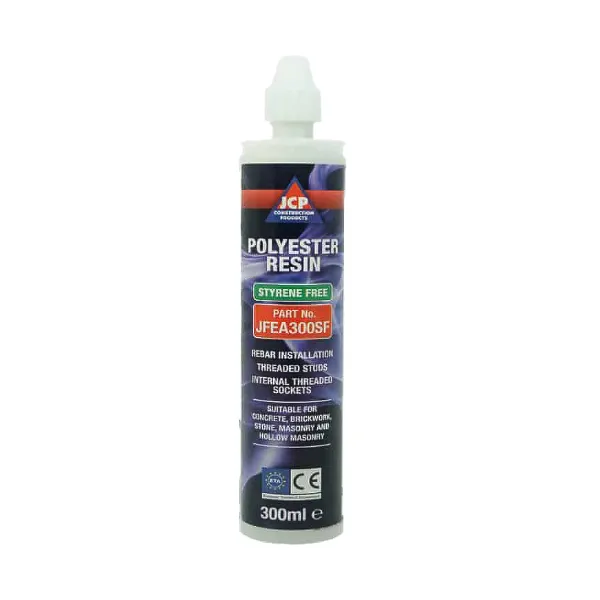

The Polyester 300ml Styrene Free resin is a two-part grey resin with a 10:1 ratio. It is suitable for use in a wide variety of base materials and is designed for installing threaded studs, rebar, or internal threaded sockets for structural applications. The product is manufactured by JCP Construction Products.

Key Benefits

• Expansion Free: The resin is expansion-free, making it suitable for a variety of applications.
• High Performance: This resin is a high-performance solution for fixing and anchoring.
• Close Spacing and Edge Distance: The resin's properties allow for close spacing and edge distances.

Applications

This resin can be used for structural applications such as:

• Columns
• Guard rails
• Façades
• Staircases
• Cantilever beams

It is suitable for the vast majority of base materials, including:

• Concrete C20/25 to C50/60
• Non-Cracked Concrete (in dry, wet, or flooded holes)
• Solid Brickwork
• Concrete Block
• Hollow Base Materials
• Natural Stone

Features & Construction

• Two-part grey resin, 10:1 ratio.
• Styrene-free formulation.
• Volume: 300ml.
• European Technical Assessment Option 7 for Non-Cracked Concrete, ETA16/0622 approved.
• Suitable for use with Stainless Steel Grade A4/316 and Zinc Plated threaded rods.
• Compatible with injection resin guns, brushes, and pumps.

Customisation Options

• Various stud types: Stainless Steel Grade A4/316 (Chisel End or Plain Ended) and Zinc Plated with Clear Passivated finish (Chisel End or Plain Ended).
• Installation accessories available, including wire mesh sleeves and nylon sleeves for hollow base materials.

Technical Specifications

Base Material Temperature	Usable Time Twork (mins)	Load Time Tload (mins)
+5°C to +9°C	10	145
+10°C to +14°C	8	85
+15°C to +19°C	6	70
+20°C to +29°C	4	50
+30°C to +34°C	3	35
+35°C to +39°C	3	20

Installation & Maintenance

• Drill the hole to the correct diameter and depth.
• Clean the hole thoroughly by blowing and brushing to remove all debris.
• Attach the mixer nozzle to the cartridge and dispense the first part of the resin to waste until the color is consistent.
• Fill the hole from the bottom, approximately 1/3 to 1/2 full.
• Insert the stud into the base material by hand, using a twisting motion.
• Allow the resin to cure for the recommended load time.
• Attach the fixture and tighten with a torque wrench to the recommended torque.
